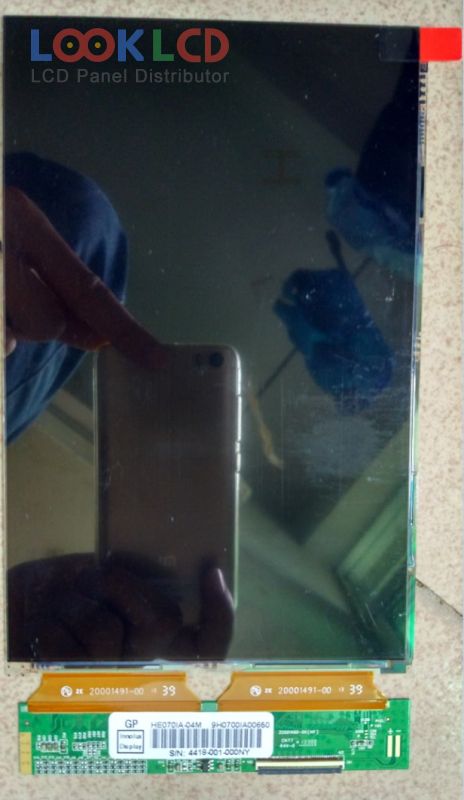

| Nama Wahi | HE070IA-04M |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | PAD |
| Whakatau | 800×1280 |
| Te tito | CELL |
| Tirohanga | 0 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | No B/L |
| Atanga | MIPI |
| panel brand | INNOLUX |
| panel model | HE070IA-04M |
| panel type | a-Si TFT-LCD , CELL |
| panel size | 7.0 inch |
| resolution | 800(RGB)×1280 , WXGA |
| display mode | IPS, Normally Black, Transmissive |
| active area | 94.2×150.72 mm |
| outline | 101.5×159.52×0.77 mm |
| surface | Hard coating |
| glass depth | 0.25+0.25 mm |
| transmissivity | 3.6% (Typ.)(with Polarizer) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193160% |
| response time | 15/25 (Typ.)(Tr/Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| signal interface | MIPI (4 data lanes), 40 pins |
| input voltage | 3.3/8.8/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| application | PAD |
