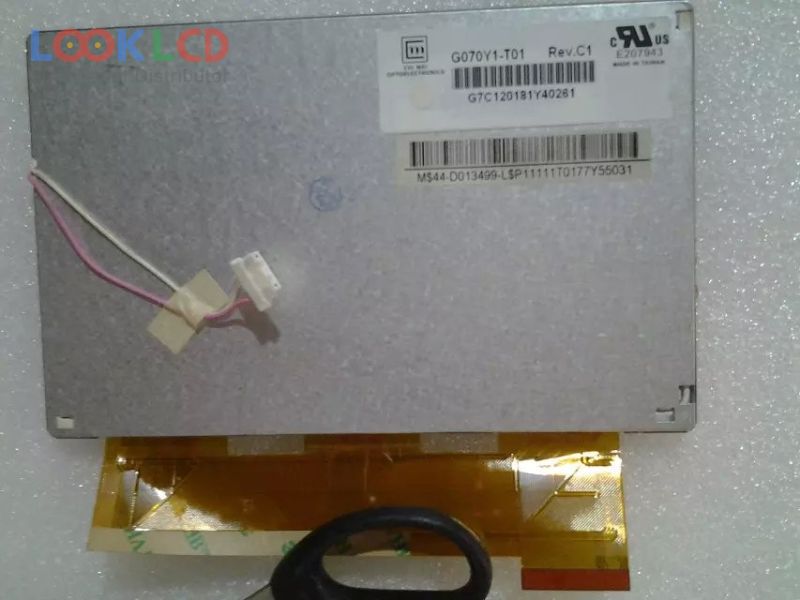

| Nama Wahi | G070Y1-T01 |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | CMO |
| panel model | G070Y1-T01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104×5.8 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 5/11 (Typ.)(Tr/Td) |
| viewing angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| input voltage | 3.3/11.6/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| application | CNS |
