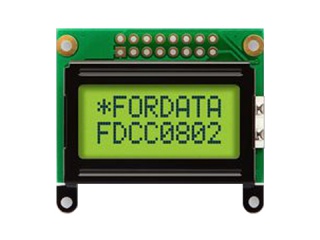

| Nama Wahi | FC0802C00-FHYYBH-91LE |
| Waitohu | Fordata |
| Rahi | 1.1 |
| Taupānga | Instruments & Me |
| Whakatau | 5×8 |
| Te tito | LCM, STN-LCD |
| Tirohanga | |
| CR | 10:1 |
| Nga Tae | Monochrome |
| Whakamuri | YG-LED |
| Atanga | 8-bit |
| manufacturer | Fordata |
| model name | FC0802C00-FHYYBH-91LE |
| screen size | 1.1 inch |
| screen type | LCM, STN-LCD |
| char number | 8 characters × 2 lines 7PPI |
| char format | 5×8 dots |
| char pitch(mm) | 3.35×5.15 (H×V) |
| char size(mm) | 2.95×4.75 (H×V) |
| active area(mm) | 26.4 × 9.9 (H×V) |
| outline(mm) | 40 × 35.4 × 13 (H×V×D) |
| bezel area(mm) | 30.4 × 13.9 (H×V) |
| treatment | - |
| luminance | - |
| contrast ratio | 10 : 1 (Typ.) (TM) |
| viewing angle | - |
| response | 150/150 (Typ.)(Tr/Td) ms |
| good view at | 6 o'clock |
| work mode | STN, Yellow/Green (Positive), Transflective |
| color depth | Monochrome |
| backlight | YG-LED , 20K hours , No Driver |
| mass | - |
| used for | Instruments & Meters |
| refresh rate | - |
| touchscreen | Without |
| signal type | 8-bit parallel , Pad 16 pins |
| voltage supply | 3.0V (Typ.) |
| max. ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
