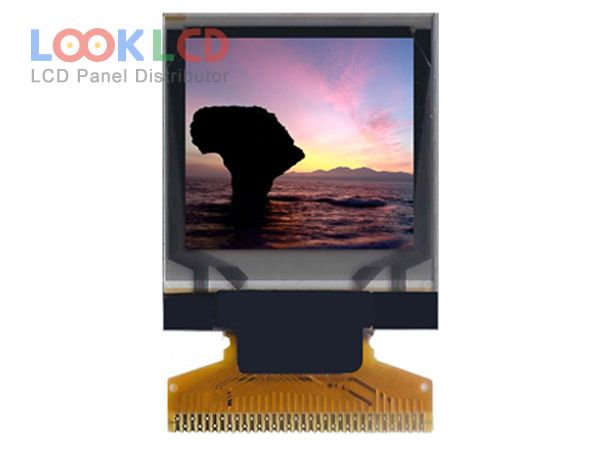

| Nama Wahi | UG-9696TDDCG02 |
| Waitohu | WiseChip |
| Rahi | 1.1 |
| Taupānga | IA |
| Whakatau | 96×96 |
| Te tito | OLED |
| Tirohanga | 100 |
| CR | 10000:1 |
| Nga Tae | 65K |
| Whakamuri | self |
| Atanga | CPU/SPI |
| panel brand | WiseChip |
| panel model | UG-9696TDDCG02 |
| panel type | PM-OLED , OLED |
| panel size | 1.1 inch |
| resolution | 96(RGB)×96 |
| active area | 19.852×19.852 mm |
| outline | 25.9×30.1×1.4 mm |
| surface | |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 10000 : 1 (Typ.) |
| display colors | 65K |
| viewing angle | |
| driver ic | COG Built-in SEPS114A |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, 34 pins |
| input voltage | 2.8/2.8/12.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| application | IA |
