| Nama Wahi | CLAA070NQ02 XN |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | CPT |

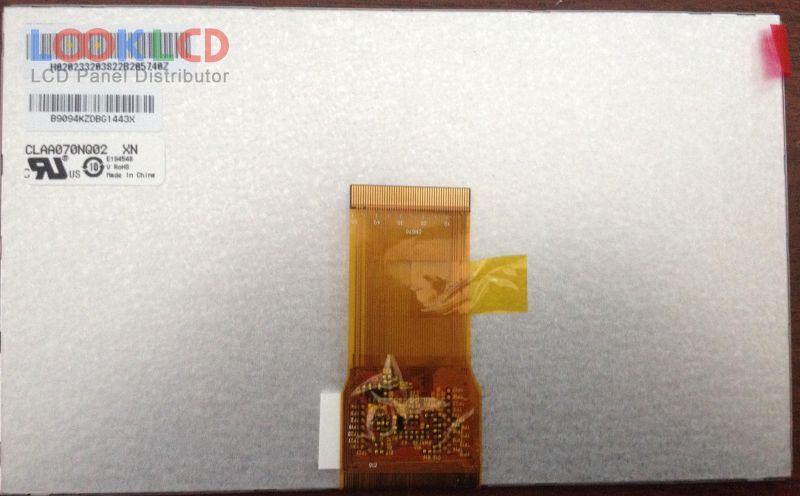

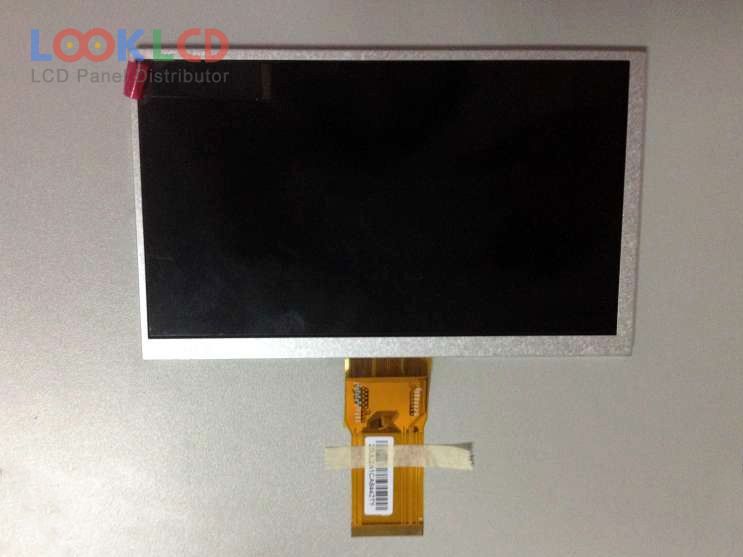

| panel model | CLAA070NQ02 XN |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | HFFS, Normally Black, Transmissive |
| active area | 154.214×85.92 mm |
| outline | 164.9×100 mm |
| surface | Antiglare |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193150% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S4PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| input voltage | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | MP4 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
