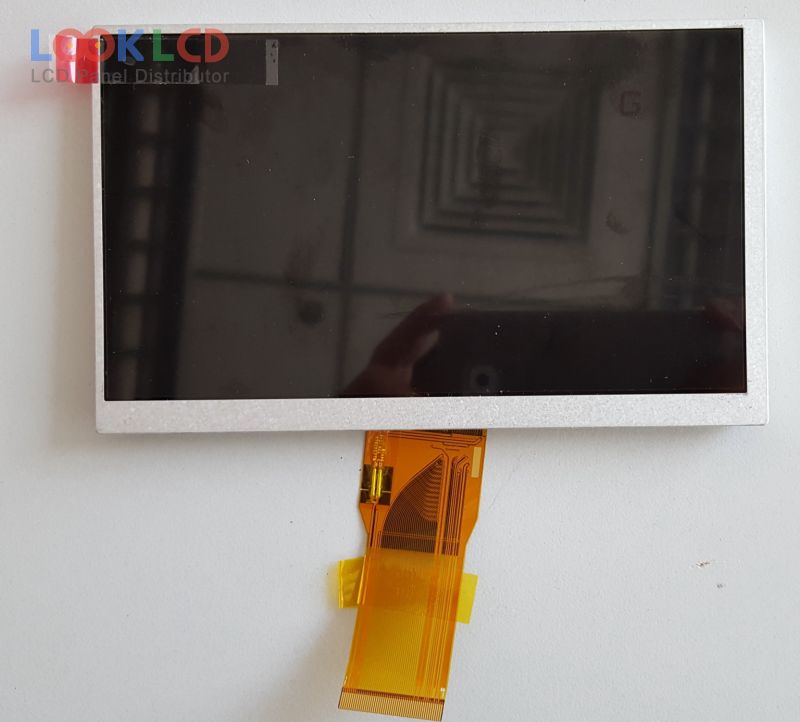

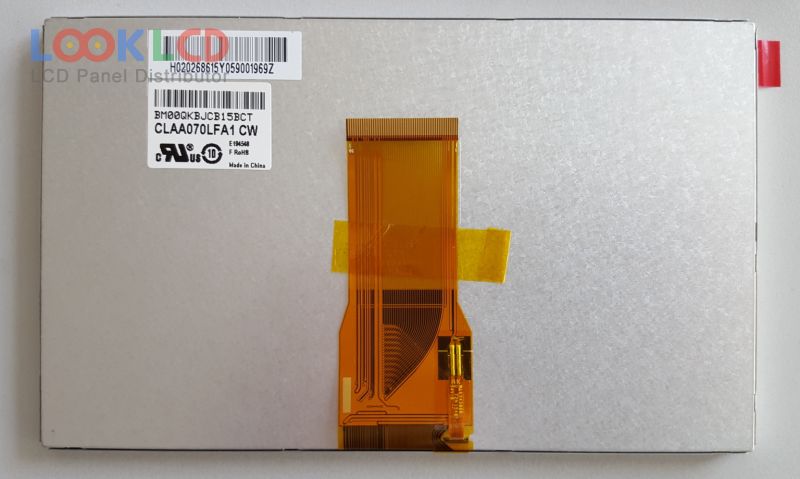

| Nama Wahi | CLAA070LFA1 CW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 500:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | CPT |
| panel model | CLAA070LFA1 CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×85.92 mm |
| outline | 164.9×100×6 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.2M (6-bit + FRC), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 75/75/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S7PWLEDWithout Driver |
| signal interface | TTL (1 ch, 8-bit), 50 pins |
| input voltage | 3.3/9.6/18.0/-6 (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | CNS |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| EDTCB18QEF | TOSHIBA | 7.0 | 800×480 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| LA080WV2-TD01 | LG Display | 8.0 | 800×480 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| TM060RDH01 | Tianma | 6.0 | 800×480 |
