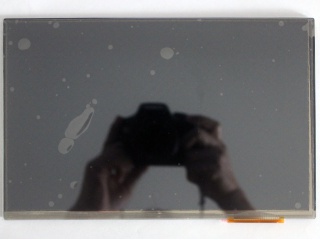

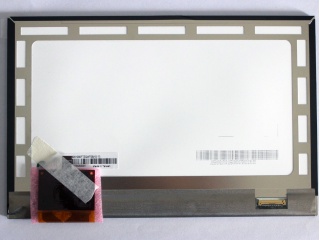

| Nama Wahi | AM-19201200FTZQW-T05 |
| Waitohu | AMPIRE |
| Rahi | 10.1 |
| Taupānga | Industrial |
| Whakatau | 1920×1200 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | eDP |
| panel brand | AMPIRE |
| panel size | 10.1" |
| resolution | 1920(RGB)×1200, WUXGA, 224PPI |
| display area | 216.806(W)×135.504(H) mm |
| outline size | 227.72(W)×146.13(H) ×7.2(D) mm |
| brightness | 320 cd/m² (Typ.) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M 50% NTSC |
| frequency | 60Hz |
| panel weight | - |
| signal interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| panel model | AM-19201200FTZQW-T05 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | - |
| surface | - |
| contrast ratio | 800:1 (Typ.) (TM) |
| display mode | AHVA, Normally Black, Transmissive |
| response time | 25 (Typ.)(Tr+Td) |
| lamp type | WLED , 30K hours , With LED Driver |
| touch screen | PCAP |
| application | Industrial |
