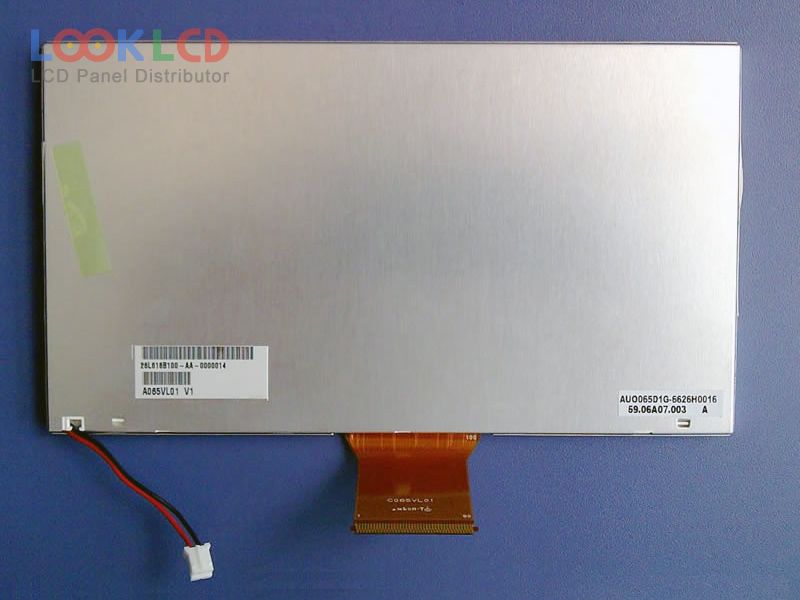

| Nama Wahi | A065VL01 V1 |
| Waitohu | AUO |
| Rahi | 6.5 |
| Taupānga | MP4 |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | AUO |
| panel model | A065VL01 V1 |
| panel type | LTPS TFT-LCD , LCM |
| panel size | 6.5 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 143.4×79.2 mm |
| outline | 157.2×89.2 mm |
| surface | Antiglare (Haze 25%) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 12/18 (Typ.)(Tr/Td) |
| viewing angle | 55/55/45/60 (Min.)(CR≥10)(L/R/U/D) |
| lamp type | 4S1PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 80 pins |
| input voltage | 3.3/10.5/13.5/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| application | MP4 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT065TN14 | Innolux | 6.5 | 800×480 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LM7MS623 | SHARP | 6.5 | 640×240 |
| LTA065A040F | TOSHIBA | 6.5 | 640×480 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| TX17D200VM0BAA | KOE | 6.5 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
