| Nama Wahi | A017CN01 V1 |
| Waitohu | AUO |
| Rahi | 1.7 |
| Taupānga | DSC |
| Whakatau | 480×240 |
| Te tito | LCM |
| Tirohanga | 280 |
| CR | 300:1 |
| Nga Tae | |
| Whakamuri | WLED |
| Atanga | Serial RGB |

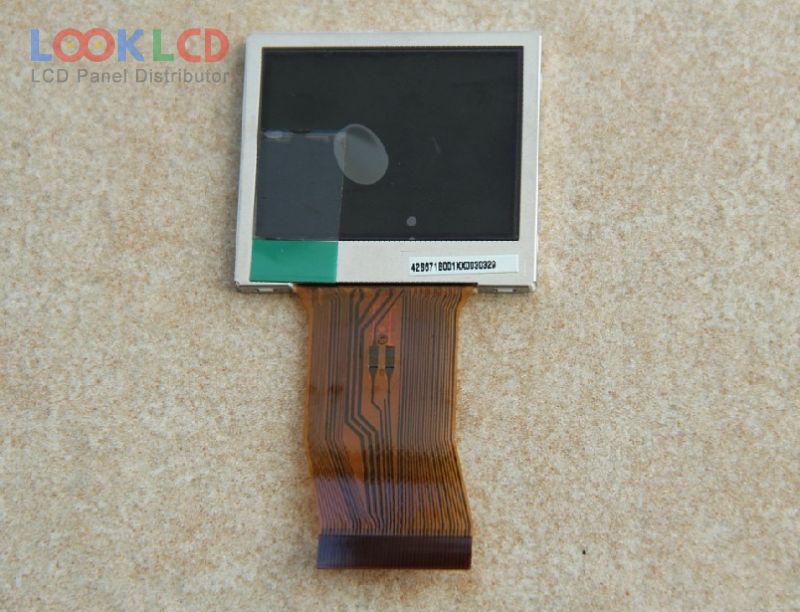

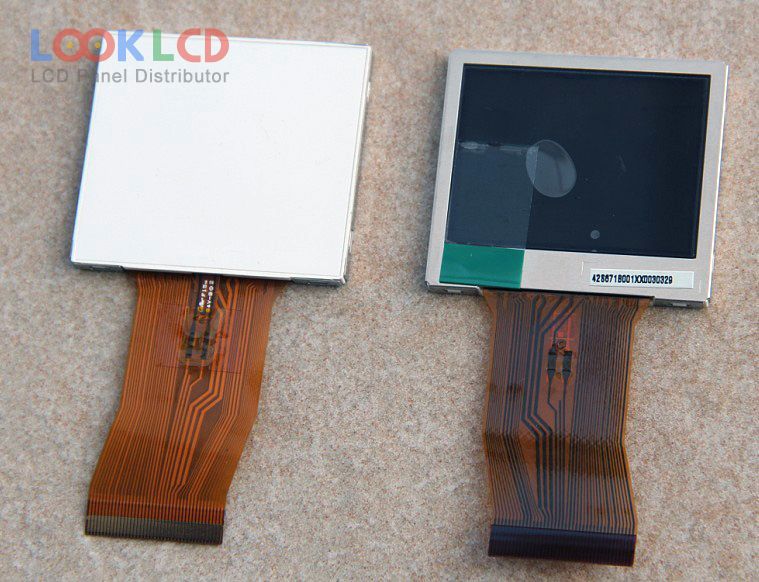

| panel brand | AUO |
| panel model | A017CN01 V1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 1.7 inch |
| resolution | 480×240 |
| display mode | TN, Normally White, Transmissive |
| active area | 34.08×25.56 mm |
| outline | 41.58×37.26 mm |
| surface | Hard coating (3H) |
| brightness | 280 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | |
| response time | 25/30 (Typ.)(Tr/Td) |
| viewing angle | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 3S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| input voltage | 3.0/3.3/0.1V (Typ.)(VCC/AVDD/VCDC) |
| application | DSC |
