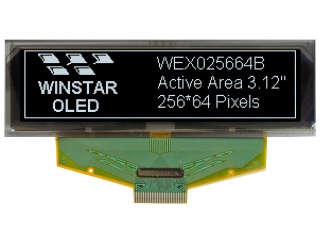

| Nama Wahi | WEX025664BW |
| Waitohu | Winstar |
| Rahi | 3.1 |
| Taupānga | Automotive Electroni |
| Whakatau | 256×64 |
| Te tito | PM-OLED , OLED |
| Tirohanga | |
| CR | |
| Nga Tae | Mono(White) |
| Whakamuri | self |
| Atanga | CPU/SPI |
| panel brand | Winstar |
| panel size | 3.1" |
| resolution | 256×64, 84PPI |
| display area | 76.778(W)×19.178(H) mm |
| outline size | 88(W)×27.8(H) mm |
| viewing angle | - |
| best view on | Symmetry |
| display colors | Mono(White) |
| frequency | - |
| driver ic | TAB Built-in SSD1322UR1 |
| panel weight | - |
| signal interface | CPU/SPI , 30 pins FPC |
| input voltage | 3.0V (Typ.) |
| panel model | WEX025664BW |
| panel type | PM-OLED , OLED |
| pixel format | Rectangle |
| bezel opening | 78.78(W)×21.18(H) mm |
| surface | - |
| display mode | - |
| response time | - |
| lamp type | self |
| touch screen | Without |
| application | Automotive Electronics Handheld & PDA Healthcare Instruments & Meters |
| AMFN888 | Samsung | 3.1 | 480×800 |
| EL160.120.39 | Lumineq | 3.1 | 160×120 |
| EL160.120.39 CC | Lumineq | 3.1 | 160×120 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
