Lumineq EL160.120.39 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

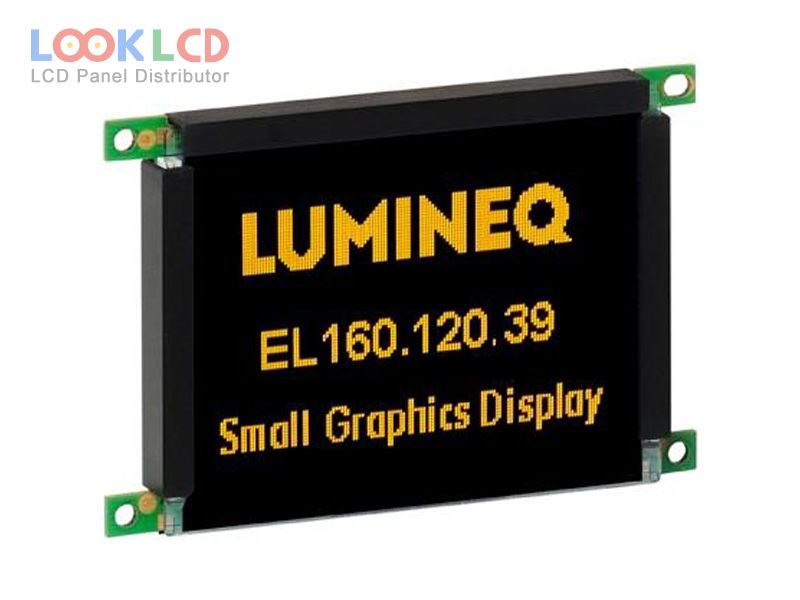

EL160.120.39

EL160.120.39
EL160.120.39 thumb
Waitohu
Lumineq
Rahi
3.1
Taupānga
IA
Whakatau
160×120
Te tito
EL
Tirohanga
70
CR
60:1
Nga Tae
Mono(Yellow)
Whakamuri
self
Atanga
Parallel Data
In Stock
13300
Whakatakotoranga

Nama Wahi EL160.120.39
WaitohuLumineq
Rahi3.1
TaupāngaIA
Whakatau160×120
Te titoEL
Tirohanga70
CR60:1
Nga TaeMono(Yellow)
Whakamuriself
AtangaParallel Data
panel brandLumineq
panel modelEL160.120.39
panel type EL , EL
panel size3.1 inch
resolution160×120 , QQVGA
active area62.3×46.7 mm
outline93.6×61.5 mm
surface
brightness70 cd/m² (Typ.)
contrast ratio60 : 1 (Typ.)
display colorsMono(Yellow) (1-bit)
viewing angle89/89/89/89 (Typ.)(L/R/U/D)
frequency150Hz
signal interfaceParallel Data (1ch, 4-bit), 20 pins
input voltage5.25/18V (Typ.)(VL/VH)
applicationIA
