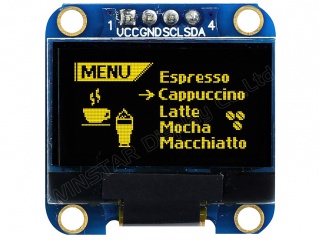

| Nama Wahi | WEA012864DLPP3N00003 |
| Waitohu | Winstar |
| Rahi | 0.96 |
| Taupānga | Instruments & Meters |
| Whakatau | 128×64 |
| Te tito | OLED , PM-OLED |
| Tirohanga | |
| CR | |
| Nga Tae | Mono(Yellow) |
| Whakamuri | self |
| Atanga | 4-wire |
| manufacturer | Winstar |
| screen size | 0.96 inch |
| pixel number | 128×64 149PPI |
| active area(mm) | 21.74 × 10.86 (H×V) |
| bezel area(mm) | 23.94 × 12.06 (H×V) |
| viewing angle | - |
| good view at | Symmetry |
| color depth | Mono(Yellow) |
| mass | - |
| refresh rate | - |
| driver ic list | Built-in COG SSD1306BZ |
| signal type | 4-wire SPI, I²C , 8 pins PIN |
| voltage supply | 3.3/5.0/7.5V (Typ.) |
| max. ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 80 °C |
| model name | WEA012864DLPP3N00003 |
| screen type | OLED , PM-OLED |
| arrangement | Rectangle |
| outline(mm) | 38 × 28.5 × 4.37 (H×V×D) |
| treatment | - |
| response | - |
| work mode | - |
| backlight | self |
| used for | Instruments & Meters |
| touchscreen | Without |
