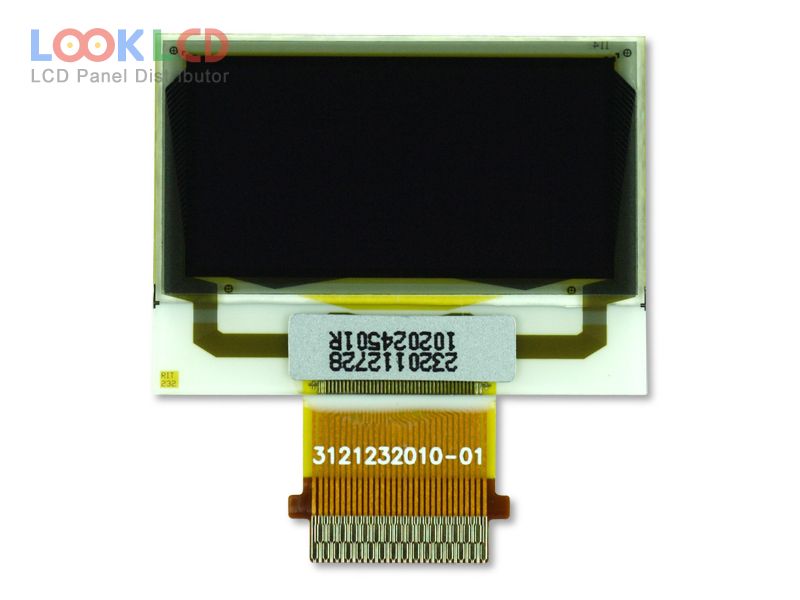

RGS10128064WR010


Waitohu
RiTdisplay
Rahi
0.96
Taupānga
IA
Whakatau
128×64
Te tito
OLED
Tirohanga
100
CR
2000:1
Nga Tae
Mono(White)
Whakamuri
self
Atanga
CPU/SPI/I²C
In Stock
9628
Whakatakotoranga

Nama Wahi RGS10128064WR010
WaitohuRiTdisplay
Rahi0.96
TaupāngaIA
Whakatau128×64
Te titoOLED
Tirohanga100
CR2000:1
Nga TaeMono(White)
Whakamuriself
AtangaCPU/SPI/I²C
panel brandRiTdisplay
panel modelRGS10128064WR010
panel type PM-OLED , OLED
panel size0.96 inch
resolution128×64
active area21.74×10.86 mm
outline26.4×19.7×1.36 mm
surfaceAntiglare
brightness100 cd/m² (Typ.)
contrast ratio2000 : 1 (Min.)
display colorsMono(White) (1-bit)
viewing angle80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
frequency105Hz
driver icCOG Built-in SEPS200A
signal interface8-bit 6800/8080 parallel, SPI, I²C, 31 pins
input voltage12/2.8V (Typ.)(VCC/VDD)
applicationIA
