| Nama Wahi | TX31D32VM2AAA |
| Waitohu | KOE |
| Rahi | 12.1 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |

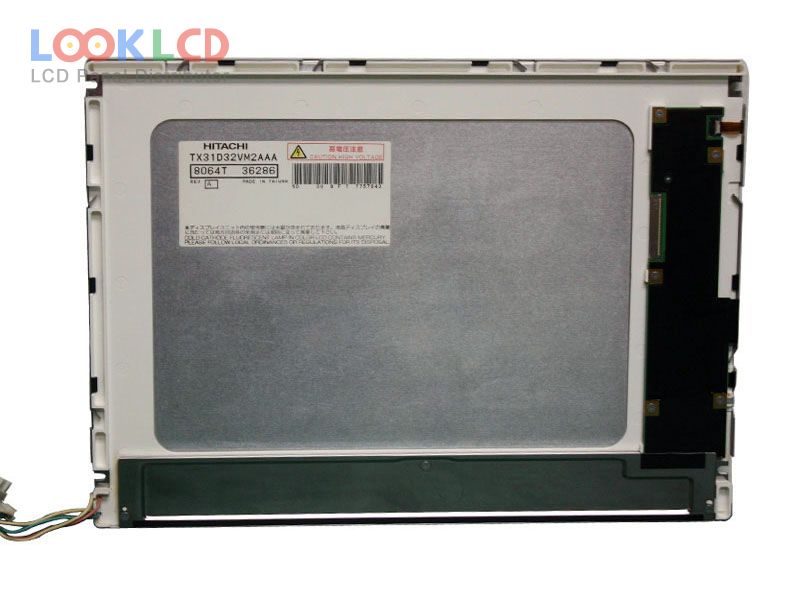

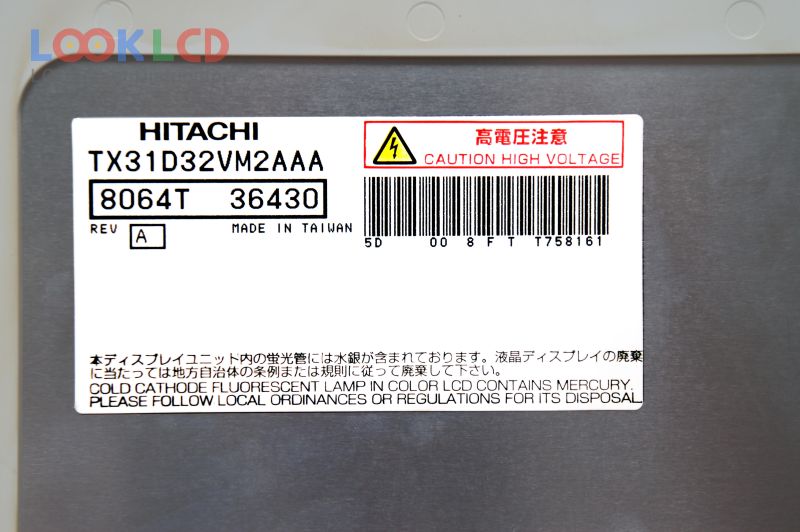

| panel brand | HITACHI |
| panel model | TX31D32VM2AAA |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 246×184.5 mm |
| outline | 280×210×13.5 mm |
| surface | Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 15/10 (Typ.)(Tr/Td) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
