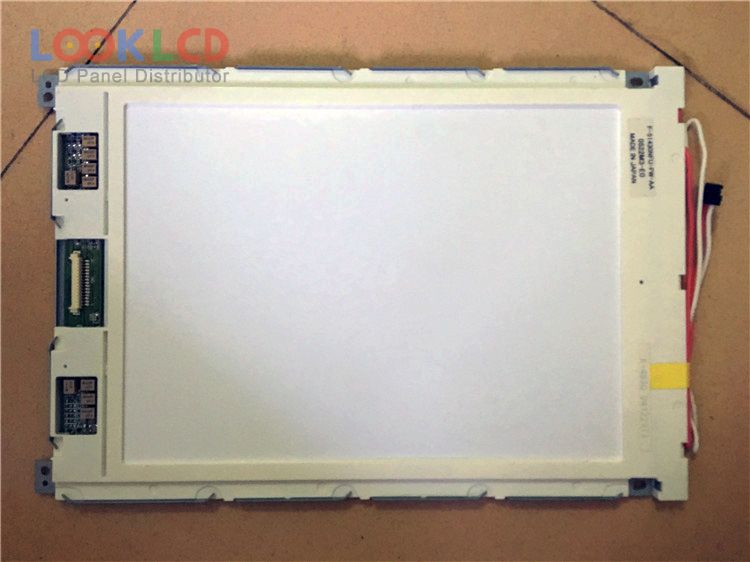

| Nama Wahi | F-51430NFU-FW-AA |
| Waitohu | Kyocera |
| Rahi | 9.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 110 |
| CR | 14:1 |
| Nga Tae | Monochrome |
| Whakamuri | CCFL |
| Atanga | Parallel Data |
| panel brand | OPTREX |
| panel model | F-51430NFU-FW-AA |
| panel type | FSTN-LCD , LCM |
| panel size | 9.4 inch |
| resolution | 640×480 , VGA |
| display mode | STN, Black/White mode, Transmissive |
| active area | 191.97×143.97 mm |
| outline | 260×174×8.5 mm |
| surface | |
| brightness | 110 cd/m² (Typ.) |
| contrast ratio | 14:1 (Typ.) |
| display colors | Monochrome (1-bit) |
| response time | 210/120 (Typ.)(Tr/Td) |
| viewing angle | 60/60/23/32 (Typ.)(CR≥2)(L/R/U/D) |
| frequency | 70Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (2ch, 4-bit), 15 pins |
| input voltage | 2.5/5.5V (Min./Max.) |
| application | IA |
