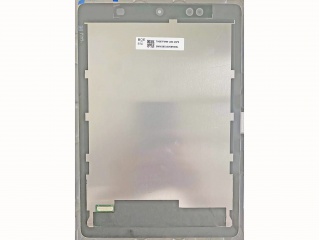

| Nama Wahi | TV097FMM-LB0-1SP0 |
| Waitohu | BOE |
| Rahi | 9.7 |
| Taupānga | Pad & Tablet |
| Whakatau | 1280×1752 |
| Te tito | a-Si TFT-LCD , Assem |
| Tirohanga | |
| CR | 1200:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| brand | BOE |
| diagonal size | 9.7 inch |
| pixel format | 1280(RGB)×1752 223PPI |
| active area | 145.344(H)×198.94(V) mm |
| bezel area | - |
| luminance | 320 cd/m² (Typ.) |
| view direction | Symmetry |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| support color | 16.7M 70% NTSC |
| weight | 115g (Max.) |
| frame rate | 60Hz |
| interface type | MIPI (4 data lanes) , 45 pins Connector |
| power supply | 1.8/5.7/-5.7V (Typ.)(VDD/AVDD/AVEE) |
| environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| model | TV097FMM-LB0-1SP0 |
| type | a-Si TFT-LCD , Assembly |
| configuration | RGB Vertical Stripe |
| outline dim. | 150.344(H)×208.29(V) mm |
| treatment | Clear, Hard coating |
| contrast ratio | 1200:1 (Typ.) (TM) |
| response time | 35 (Max.)(G to G) |
| operating mode | - |
| light source | WLED [9S4P] , 15K hours , W/O Driver |
| designed for | Pad & Tablet |
| touch panel | In-Cell Touch |
