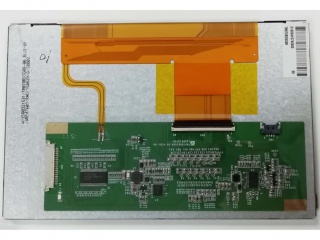

| Nama Wahi | TM070RDSG08 |
| Waitohu | TIANMA |
| Rahi | 7.0 |
| Taupānga | Industrial |
| Whakatau | 800×480 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | 10S3P |
| Atanga | LVDS |
| manufacturer | TIANMA |
| screen size | 7.0 inch |
| pixel number | 800(RGB)×480 (WVGA) 133PPI |
| active area(mm) | 152.4 × 91.44 (H×V) |
| bezel area(mm) | 155.4 × 94.44 (H×V) |
| luminance | 500 cd/m² (Typ.) |
| viewing angle | 70/70/70/60 (Typ.)(CR≥10) |
| good view at | - |
| color depth | 262K/16.7M 70% NTSC |
| mass | 176g (Typ.) |
| refresh rate | 60Hz |
| signal type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model name | TM070RDSG08 |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| treatment | Antiglare |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| response | 25 (Typ.)(Tr+Td) ms |
| work mode | TN, Normally White, Transmissive |
| backlight | 10S3P WLED , 50K hours , With LED Driver |
| used for | Industrial |
| touchscreen | Without |
