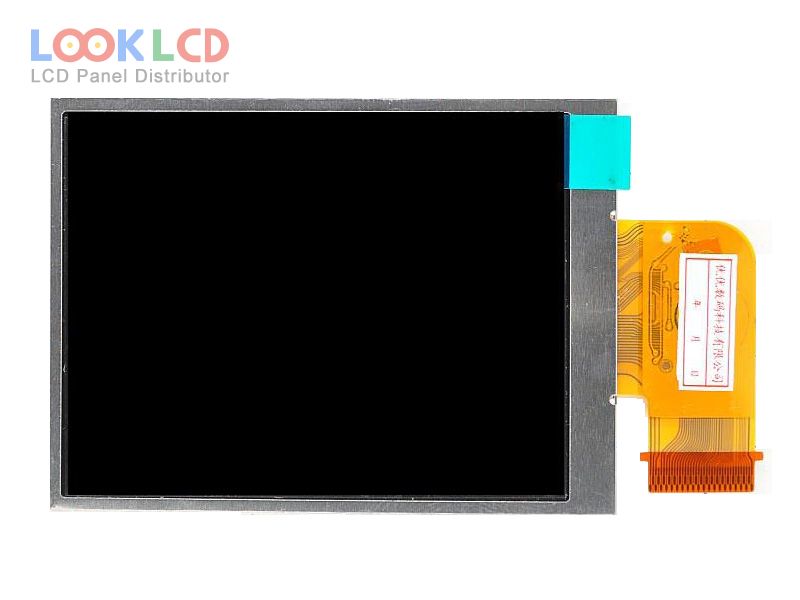

| Nama Wahi | TM027CDH02 |
| Waitohu | Tianma |
| Rahi | 2.7 |
| Taupānga | DSC |
| Whakatau | 320×240 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 350:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | Serial RGB |
| panel brand | TIANMA |
| panel model | TM027CDH02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 2.7 inch |
| resolution | 320(RGB)×240 , QVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 54×40.5 mm |
| outline | 63.5×46.6 mm |
| surface | Clear, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 350:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193140% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 2S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| input voltage | 3.3V (Typ.)(VDD) |
| application | DSC |
