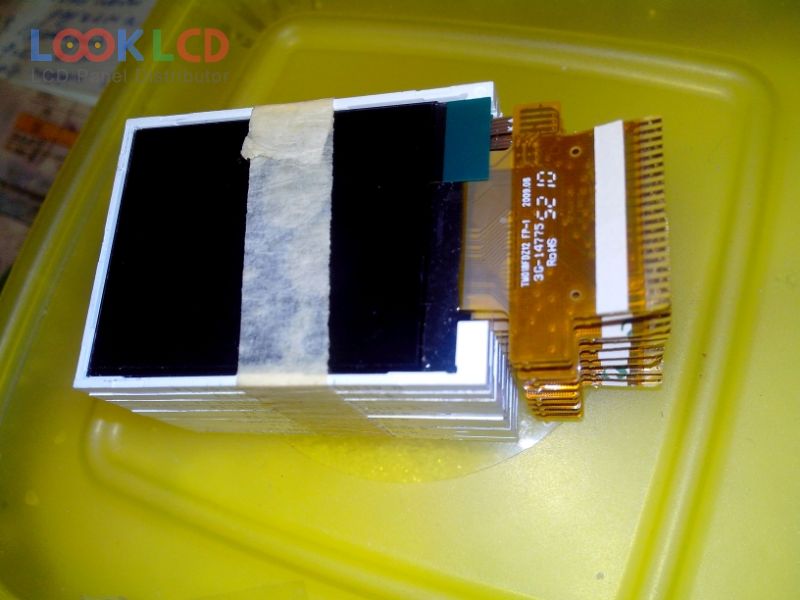

| Nama Wahi | TM018FDZ12 |
| Waitohu | Tianma |
| Rahi | 1.8 |
| Taupānga | MPH |
| Whakatau | 128×160 |
| Te tito | LCM |
| Tirohanga | 190 |
| CR | 350:1 |
| Nga Tae | 65K/262K |
| Whakamuri | WLED |
| Atanga | CPU |
| panel brand | TIANMA |
| panel model | TM018FDZ12 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 1.8 inch |
| resolution | 128(RGB)×160 |
| display mode | TN, Normally White, Transmissive |
| active area | 28.032×35.04 mm |
| outline | 34.7×45.83×2.85 mm |
| surface | |
| brightness | 190 cd/m² (Min.) |
| contrast ratio | 350:1 (Typ.) |
| display colors | 65K/262K , CIE193154% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1S2PWLEDWithout Driver |
| signal interface | CPU, 20 pins |
| input voltage | 2.8/2.8V (Typ.)(VDDI/VDD) |
| application | MPH |
