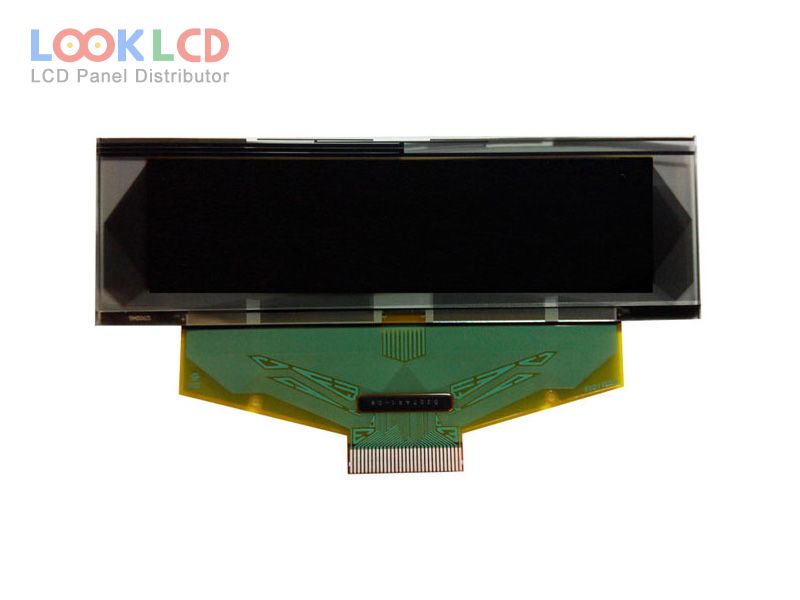

OEL9M0065-G-E

OEL9M0065-G-E
OEL9M0065-G-E thumb
Waitohu
Other
Rahi
2.7
Taupānga
IA
Whakatau
256×64
Te tito
OLED
Tirohanga
110
CR
10000:1
Nga Tae
Grayscale(G)
Whakamuri
self
Atanga
CPU/SPI
In Stock
18249
Whakatakotoranga

Nama Wahi OEL9M0065-G-E
WaitohuOther
Rahi2.7
TaupāngaIA
Whakatau256×64
Te titoOLED
Tirohanga110
CR10000:1
Nga TaeGrayscale(G)
Whakamuriself
AtangaCPU/SPI
panel brandTRULY
panel modelOEL9M0065-G-E
panel type PM-OLED , OLED
panel size2.7 inch
resolution256×64
active area66.53×16.61 mm
outline82×25.5×1.6 mm
surface
brightness110 cd/m² (Typ.)
contrast ratio10000 : 1 (Min.)
display colorsGrayscale(G) (4-bit)
viewing angle80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
frequency100Hz
driver icCOF Built-in SSD1322UR1
signal interface8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins
input voltage3.0/14.0V (Typ.)(VCI/VCC)
applicationIA
