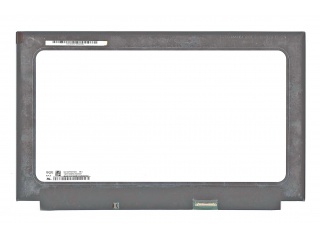

Nama Wahi | NV133FHM-N64 |
Waitohu | BOE |
Rahi | 13.3 |
Taupānga | Laptop |
Whakatau | 1920×1080 |
Te tito | LCM , a-Si TFT-LCD |
Tirohanga | |
CR | 800:1 |
Nga Tae | 16.2M |
Whakamuri | WLED |
Atanga | eDP |
manufacturer | BOE |
screen size | 13.3 inch |
pixel number | 1920(RGB)×1080 (FHD) 166PPI |
active area(mm) | 293.76 × 165.24 (H×V) |
bezel area(mm) | - |
luminance | - |
viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
good view at | Symmetry |
color depth | 16.2M |
outline shape | Slim (PCBA Flat, T≤3.2mm) |
refresh rate | 60Hz |
signal type | eDP (2 Lanes) , 30 pins Connector |
voltage supply | 3.3V (Typ.) |
max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
model name | NV133FHM-N64 |
screen type | LCM , a-Si TFT-LCD |
arrangement | RGB Vertical Stripe |
outline(mm) | 300.26 × 187.45 × 2.45 (H×V×D) |
treatment | Hard coating (3H) |
contrast ratio | 800 : 1 (Typ.) (TM) |
response | 30 (Typ.)(Tr+Td) ms |
work mode | ADS, Normally Black, Transmissive |
backlight | WLED , 15K hours , With LED Driver |
used for | Laptop |
touchscreen | Without |
