LG Display LP133WX3-TLA4 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

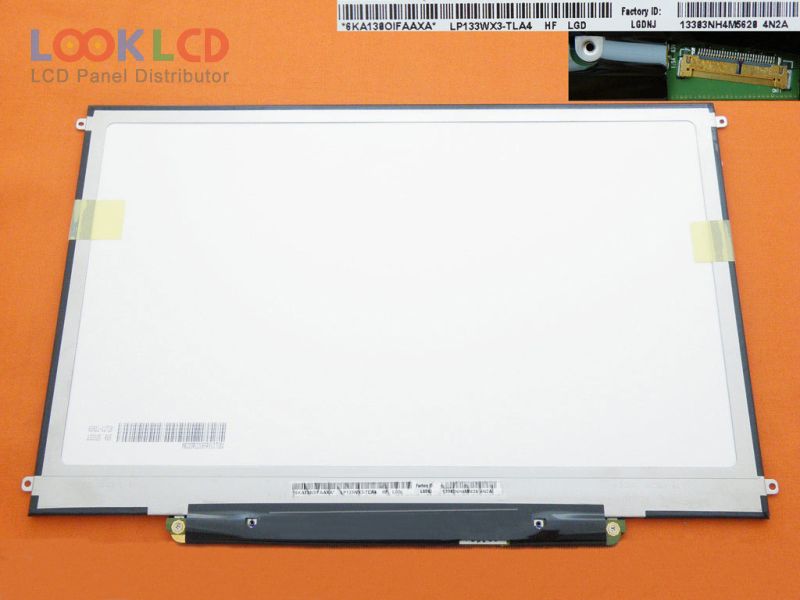

LP133WX3-TLA4


Waitohu
LG Display
Rahi
13.3
Taupānga
NBPC
Whakatau
1280×800
Te tito
LCM
Tirohanga
330
CR
600:1
Nga Tae
262K
Whakamuri
WLED
Atanga
LVDS
In Stock
8262
Whakatakotoranga

Nama Wahi LP133WX3-TLA4
WaitohuLG Display
Rahi13.3
TaupāngaNBPC
Whakatau1280×800
Te titoLCM
Tirohanga330
CR600:1
Nga Tae262K
WhakamuriWLED
AtangaLVDS
panel brandLG Display
panel modelLP133WX3-TLA4 11 Compatible model
panel type a-Si TFT-LCD , LCM
panel size13.3 inch
resolution1280(RGB)×800 , WXGA
display modeTN, Normally White, Transmissive
active area286.08×178.8 mm
outline307.38×203.1×3.75 mm
shape styleFlat (PCBA Flat, Depth 3.4~4.0mm)
surfaceGlare (Haze 0%), Hard coating, Antireflection
brightness330 cd/m² (Typ.)
contrast ratio600:1 (Typ.)
display colors262K (6-bit)
response time16 (Typ.)(Tr+Td)
viewing angle70/70/60/60 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type6 stringsWLEDWithout Driver
signal interfaceLVDS (1 ch, 6-bit), 30 pins
input voltage3.3V (Typ.)
applicationNBPC
