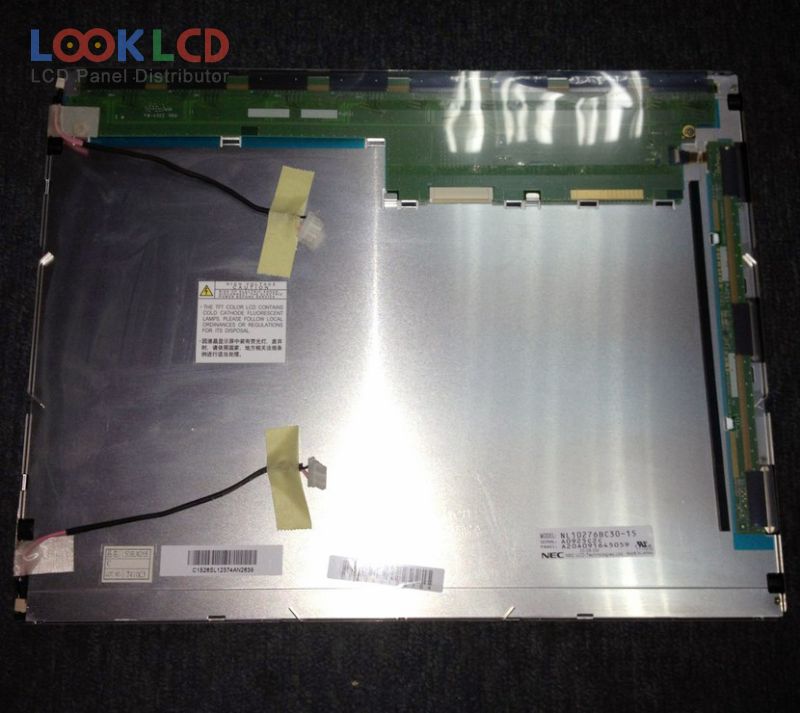

| Nama Wahi | NL10276BC30-15 |
| Waitohu | NLT |
| Rahi | 15.0 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 400:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | NEC |
| panel model | NL10276BC30-15 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.0 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 304.128×228.096 mm |
| outline | 328×252×11.5 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193160% |
| response time | 8/17 (Typ.)(Tr/Td) |
| viewing angle | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL10276BC20-37 | NLT | 10.4 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| G321EV5B000 | SII | 4.7 | 320×240 |
| LMG5278XUFC-A | KOE | 9.4 | 640×480 |
| LQ104S1DG21 | SHARP | 10.4 | 800×600 |
| LQ10D421 | SHARP | 10.4 | 640×480 |
| NL8060AC26-11 | NLT | 10.4 | 800×600 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| TM12864G3CCWGWA-1 | Tianma | 2.4 | 128×64 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
| V16C6448AC | E Ink | 6.4 | 640×480 |
