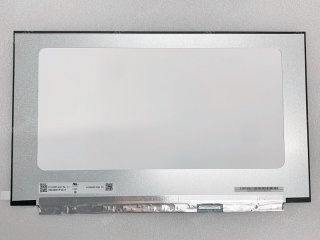

Nama Wahi | N156KME-GNA |
Waitohu | Innolux |
Rahi | 15.6 |
Taupānga | Laptop Gaming |
Whakatau | 2560×1440 |
Te tito | LCM , a-Si TFT-LCD |
Tirohanga | |
CR | 1000:1 |
Nga Tae | 16.7M |
Whakamuri | 11S6P |
Atanga | |
manufacturer | Innolux |
screen size | 15.6 inch |
pixel number | 2560(RGB)×1440 (Quad-HD) 188PPI |
active area(mm) | 344.2 × 193.62 (H×V) |
bezel area(mm) | - |
luminance | 300 (Typ.)(cd/m²) |
viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
good view at | Symmetry |
color depth | 16.7M 100% DCI-P3 |
outline shape | Slim (PCBA Flat, T≤3.2mm) |
refresh rate | 165Hz |
model name | N156KME-GNA (CMN152A) |
screen type | LCM , a-Si TFT-LCD |
arrangement | RGB Vertical Stripe |
outline(mm) | 350.66 × 205.24 × 2.6 (H×V×D) |
treatment | Antiglare, Hard coating (3H) |
contrast ratio | 1000 : 1 (Typ.) (TM) |
work mode | AAS, Normally Black, Transmissive |
response | 5/4 (Typ.)(Tr/Td) ms |
backlight | 11S6P WLED , 15K hours , With LED Driver |
used for | Laptop Gaming |
touchscreen | Without |
