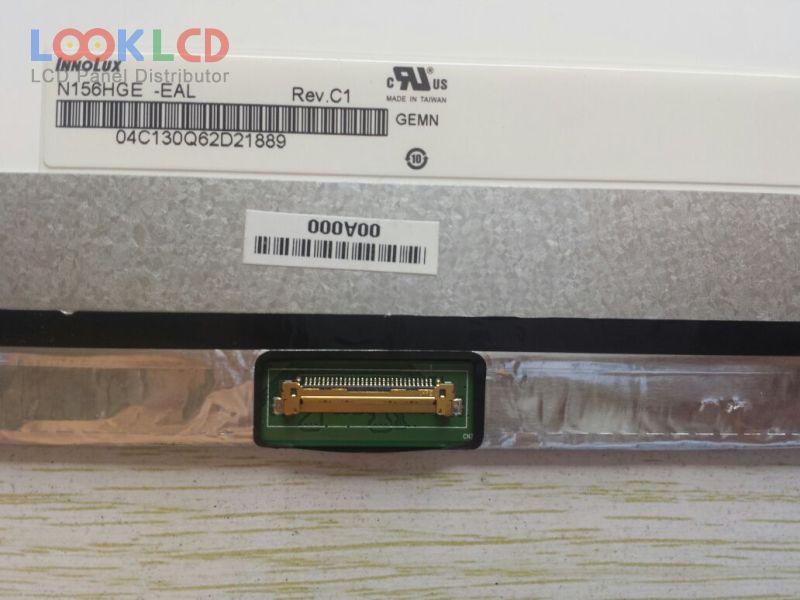

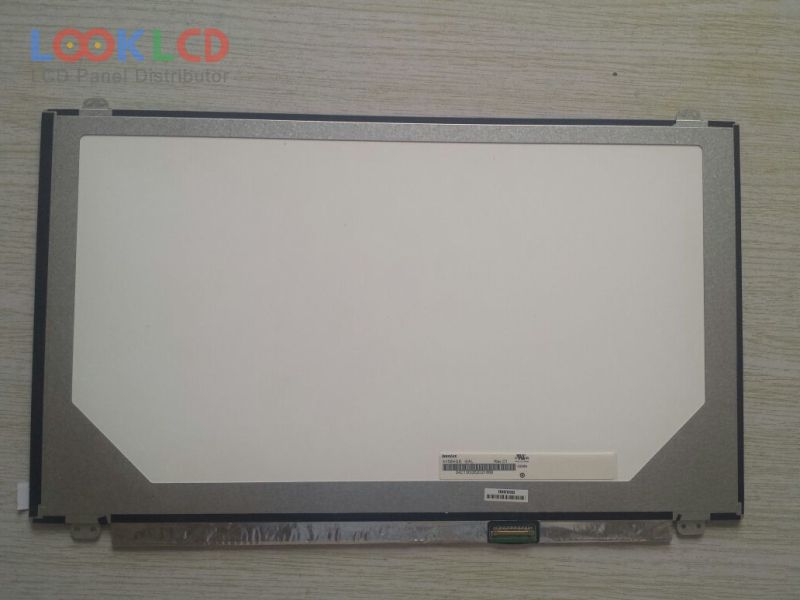

N156HGE-EAL Rev.C1

N156HGE-EAL Rev.C1
N156HGE-EAL Rev.C1
N156HGE-EAL Rev.C1 thumb N156HGE-EAL Rev.C1 thumb
Waitohu
Innolux
Rahi
15.6
Taupānga
NBPC
Whakatau
1920×1080
Te tito
LCM
Tirohanga
220
CR
500:1
Nga Tae
262K
Whakamuri
WLED
Atanga
eDP
In Stock
13136
Whakatakotoranga

Nama Wahi N156HGE-EAL Rev.C1
WaitohuInnolux
Rahi15.6
TaupāngaNBPC
Whakatau1920×1080
Te titoLCM
Tirohanga220
CR500:1
Nga Tae262K
WhakamuriWLED
AtangaeDP
panel brandINNOLUX
panel modelN156HGE-EAL Rev.C1
panel type a-Si TFT-LCD , LCM
panel size15.6 inch
resolution1920(RGB)×1080 , FHD
display modeTN, Normally White, Transmissive
active area344.16×193.59 mm
outline359.5×224.3×3.2 mm
shape styleSlim (PCBA Flat, Depth ≤3.2mm)
surfaceAntiglare (Haze 24%), Hard coating (3H)
brightness220 cd/m² (Typ.)
contrast ratio500:1 (Typ.)
display colors262K (6-bit), CIE193194%
response time3/8 (Typ.)(Tr/Td)
viewing angle85/85/20/35 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)
signal interfaceeDP (2 Lanes), 30 pins
input voltage3.3V (Typ.)
applicationNBPC
