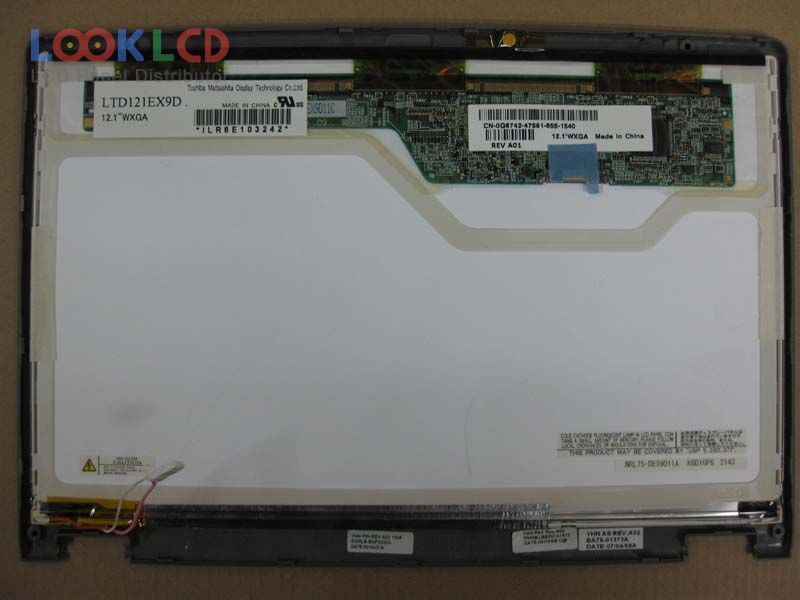

| Nama Wahi | LTD121EX9D |
| Waitohu | TOSHIBA |
| Rahi | 12.1 |
| Taupānga | NBPC |
| Whakatau | 1280×768 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | Toshiba Matsushita |
| panel model | LTD121EX9D |
| panel type | LTPS TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 1280(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 263.04×157.824 mm |
| outline | 275×173.5×5.2 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare, Hard coating (3H) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 50/50 (Max.)(Tr/Td) |
| viewing angle | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
