Innolux N154I4-L03 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

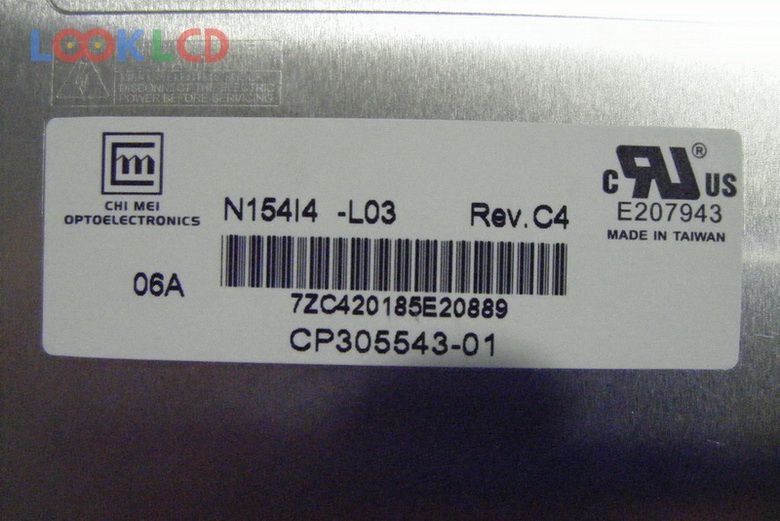

N154I4-L03


Waitohu
Innolux
Rahi
15.4
Taupānga
NBPC
Whakatau
1280×800
Te tito
LCM
Tirohanga
600
CR
800:1
Nga Tae
262K
Whakamuri
CCFL
Atanga
LVDS
In Stock
10
Whakatakotoranga

Nama Wahi N154I4-L03
WaitohuInnolux
Rahi15.4
TaupāngaNBPC
Whakatau1280×800
Te titoLCM
Tirohanga600
CR800:1
Nga Tae262K
WhakamuriCCFL
AtangaLVDS
panel brandCMO
panel modelN154I4-L03 3 Compatible model
panel type a-Si TFT-LCD , LCM
panel size15.4 inch
resolution1280(RGB)×800 , WXGA
display modeTN, Normally White, Transmissive
active area331.2×207 mm
outline344×224×6.5 mm
shape styleWedge (PCBA Bent, Depth ≥5.2mm)
surfaceGlare (Haze 0%), Hard coating (3H)
brightness600 cd/m² (Typ.)
contrast ratio800:1 (Typ.)
display colors262K (6-bit)
response time1.3/3.7 (Typ.)(Tr/Td)
viewing angle60/60/40/60 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type2 pcsCCFLWithout Driver
signal interfaceLVDS (1 ch, 6-bit), 30 pins
input voltage3.3V (Typ.)
applicationNBPC
Tauira Whanau
CLAA154WA05A CPT 15.4 1280×800
LP154WX4-TLCB LG Display 15.4 1280×800
N154I2-L01 Innolux 15.4 1280×800
N154I2-L02 Innolux 15.4 1280×800
N154I2-L05 Innolux 15.4 1280×800
N154I3-L03 Innolux 15.4 1280×800
N154I4-L03 Innolux 15.4 1280×800
N154I4-L04 Innolux 15.4 1280×800
N154I5-L02 Innolux 15.4 1280×800
N154I6-L03 Innolux 15.4 1280×800
