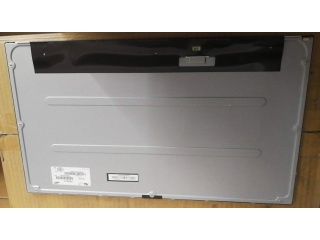

| Nama Wahi | LTM230HL10-C01 |
| Waitohu | SAMSUNG |
| Rahi | 23.0 |
| Taupānga | Desktop Monitor |
| Whakatau | 1920×1080 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | |
| panel brand | SAMSUNG |
| panel size | 23.0" |
| resolution | 1920(RGB)×1080, FHD, 95PPI |
| display area | 509.184(W)×286.416(H) mm |
| outline size | 522.38(W)×305.62(H) ×12.6(D) mm |
| brightness | 250 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M 72% NTSC |
| frequency | 60Hz |
| weight | 2.38Kgs (Max.) |
| panel model | LTM230HL10-C01 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 512.384(W)×289.616(H) mm |
| surface | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | PLS, Normally Black, Transmissive |
| response time | 14 (Typ.)(G to G) |
| lamp type | WLED , 40K hours , Without Driver |
| touch screen | Without |
| application | Desktop Monitor |
