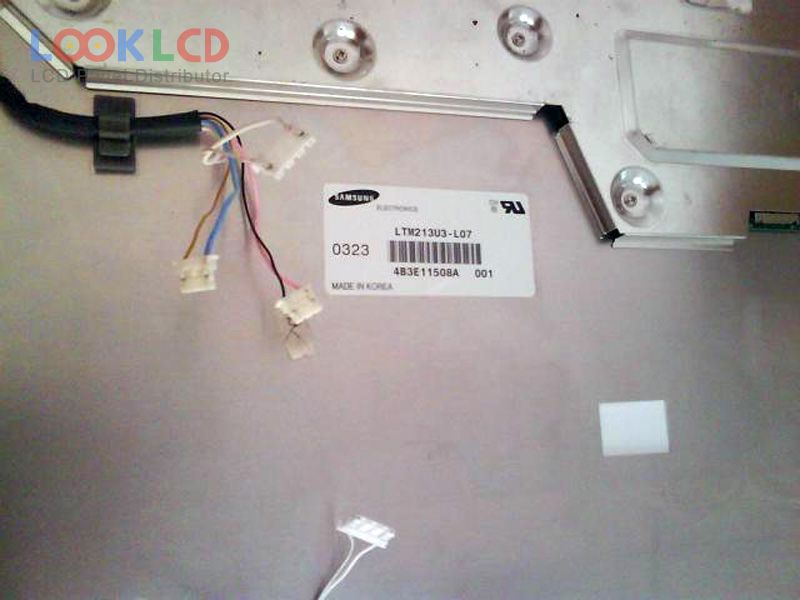

Nama Wahi | LTM213U3-L07 |
Waitohu | Samsung |
Rahi | 21.3 |
Taupānga | DMPC |
Whakatau | 1600×1200 |
Te tito | LCM |
Tirohanga | 250 |
CR | 450:1 |
Nga Tae | 16.7M |
Whakamuri | CCFL |
Atanga | OpenLDI |
panel brand | SAMSUNG |
panel model | LTM213U3-L07 |
panel type | a-Si TFT-LCD , LCM |
panel size | 21.3 inch |
resolution | 1600(RGB)×1200 , UXGA |
display mode | PVA, Normally Black, Transmissive |
active area | 432×324 mm |
outline | 483×373.2 mm |
surface | Antiglare (Haze 25%), Hard coating (3H) |
brightness | 250 cd/m² (Typ.) |
contrast ratio | 450:1 (Typ.) |
display colors | 16.7M (8-bit), CIE193165% |
response time | 20/15 (Typ.)(Tr/Td) |
viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
frequency | 60Hz |
lamp type | 6 pcsCCFLWithout Driver |
signal interface | OpenLDI, 43 pins |
input voltage | 5.0V (Typ.) |
application | DMPC |
