| Nama Wahi | LS030Y3DX01 |
| Waitohu | SHARP |
| Rahi | 3.0 |
| Taupānga | MPH |
| Whakatau | 480×800 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | TTL |

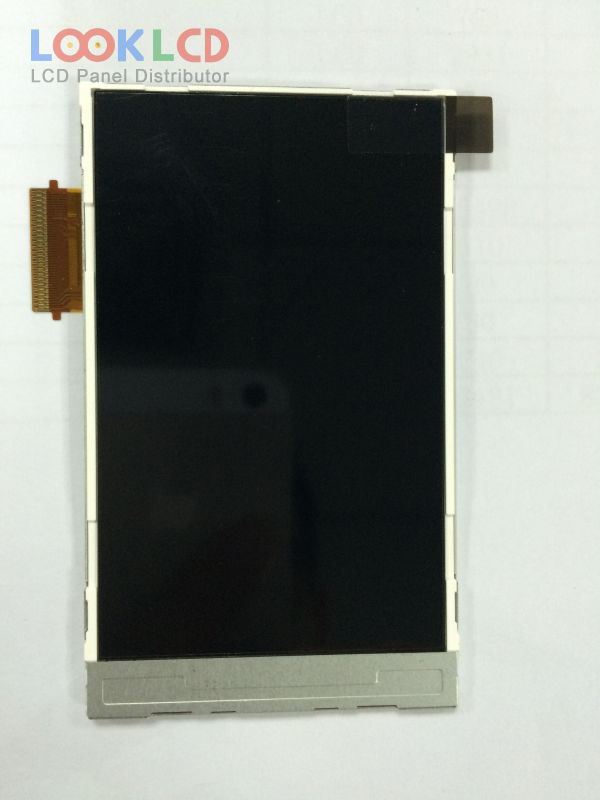

| panel brand | SHARP |
| panel model | LS030Y3DX01 |
| panel type | CG-Silicon , LCM |
| panel size | 3.0 inch |
| resolution | 480(RGB)×800 , WVGA |
| display mode | ASV, Normally Black, Transmissive |
| active area | 38.88×64.8 mm |
| outline | 45.6×76.4 mm |
| surface | |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193175% |
| response time | 11/24 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1S6PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 49 pins |
| input voltage | 2.8/2.8V (Typ.)(VDDIO/VCC) |
| application | MPH |
