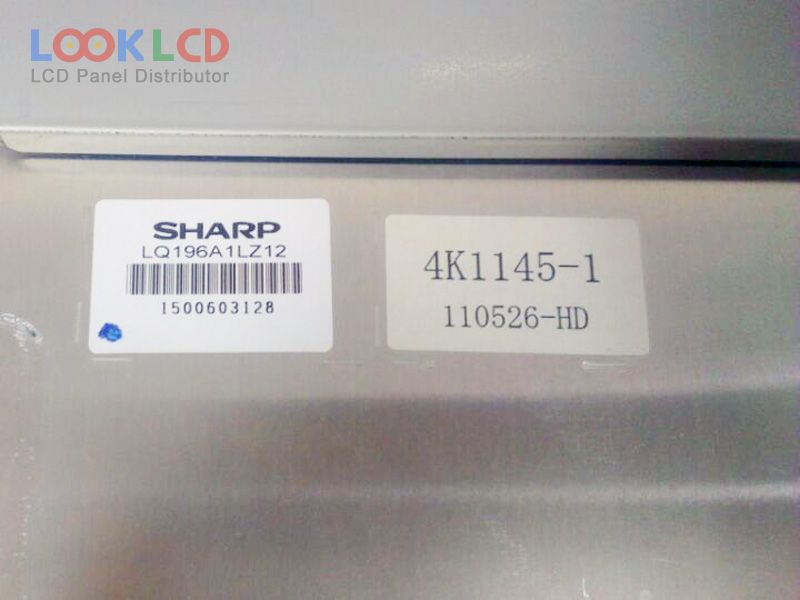

| Nama Wahi | LQ196A1LZ12 |
| Waitohu | SHARP |
| Rahi | 19.6 |
| Taupānga | GM |
| Whakatau | 1600×1200 |
| Te tito | LCM |
| Tirohanga | |
| CR | |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SHARP |
| panel model | LQ196A1LZ12 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 19.6 inch |
| resolution | 1600(RGB)×1200 , UXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 398.4×298.8 mm |
| surface | |
| brightness | |
| contrast ratio | |
| display colors | 16.2M (6-bit + FRC) |
| response time | 15/10 (Typ.)(Tr/Td) |
| viewing angle | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | WLED |
| signal interface | LVDS (2 ch, 8-bit) |
| rohs: | |
| application | GM |
