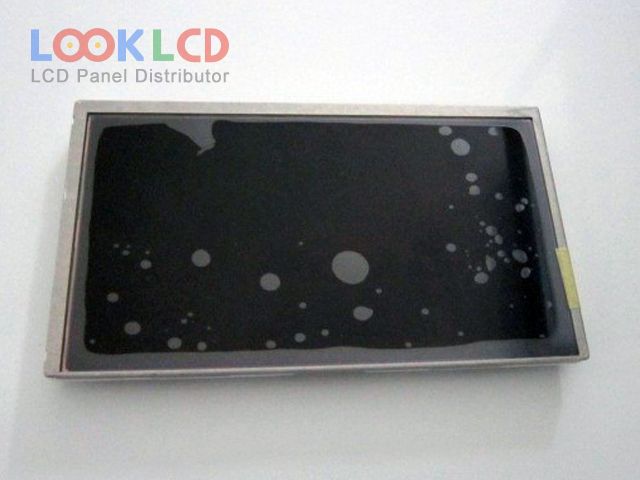

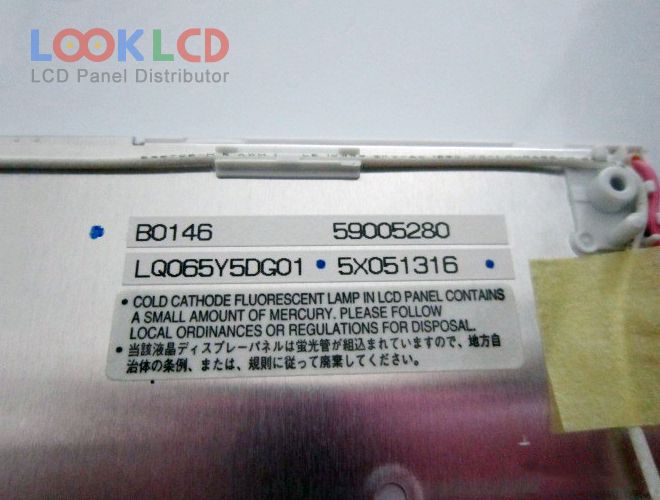

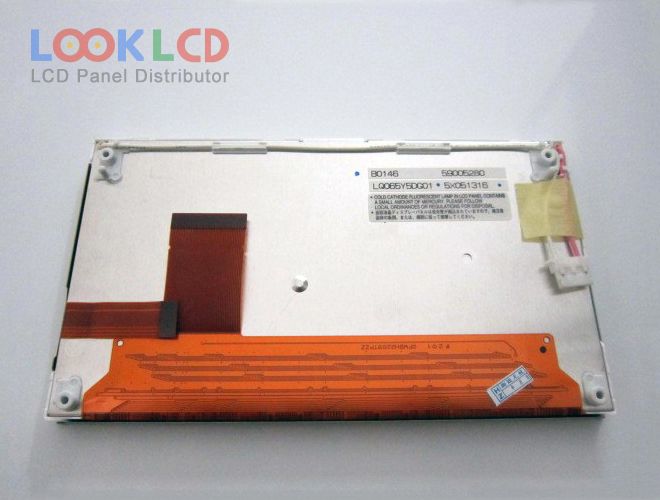

| Nama Wahi | LQ065Y5DG01 |
| Waitohu | SHARP |
| Rahi | 6.5 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 380 |
| CR | 100:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SHARP |
| panel model | LQ065Y5DG01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 6.5 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 144×78.24 mm |
| outline | 157.2×89.7 mm |
| surface | Antiglare |
| brightness | 380 cd/m² (Typ.) |
| contrast ratio | 100:1 (Min.) |
| display colors | 262K (6-bit) |
| response time | 30/50 (Typ.)(Tr/Td) |
| viewing angle | 65/65/60/65 (Typ.)(CR≥5)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 65 pins |
| input voltage | 5/3.3/15/-12/-14.4/-17.4V (Typ.)(VSHA/VGHD/VDD/VEE/VCC/VSS) |
| rohs: | |
| application | CNS |
