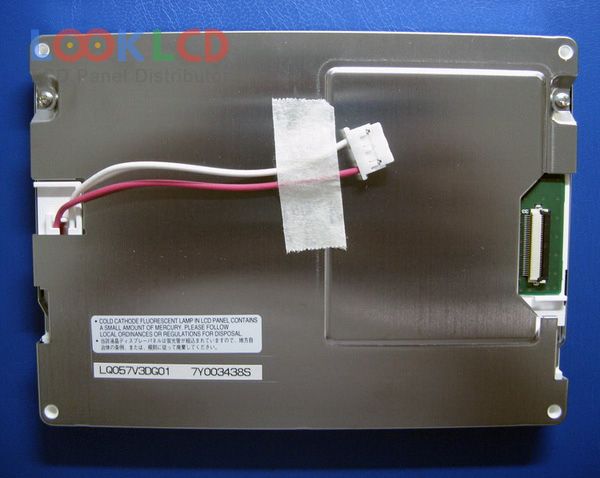

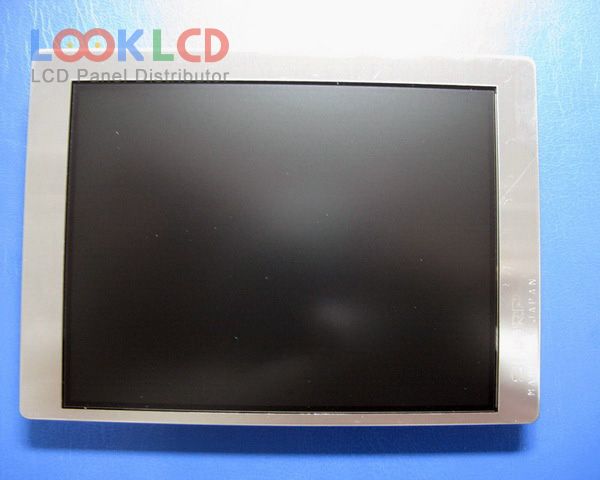

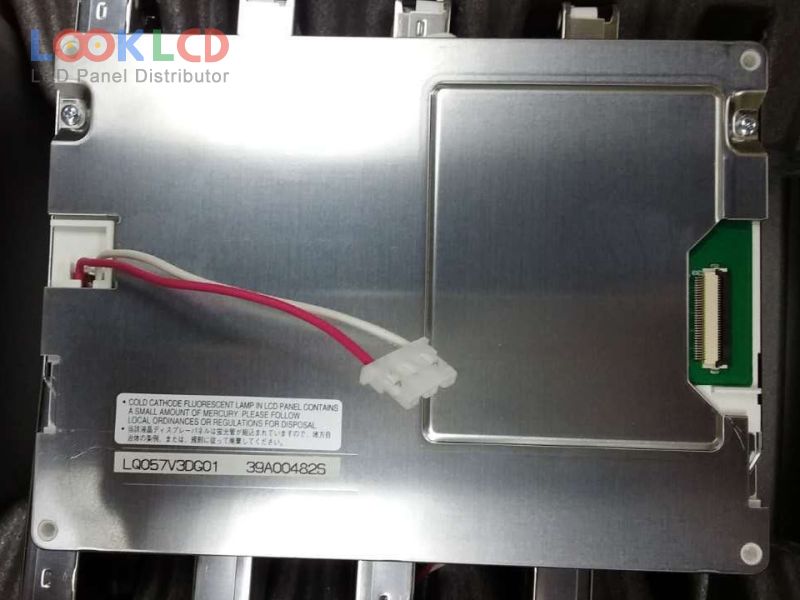

| Nama Wahi | LQ057V3DG01 |
| Waitohu | SHARP |
| Rahi | 5.7 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SHARP |
| panel model | LQ057V3DG01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.7 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 115.2×86.4 mm |
| outline | 144×104.6×13.5 mm |
| surface | Antiglare |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 8/21 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/70 (Typ.)(CR≥5)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| application | IA |
