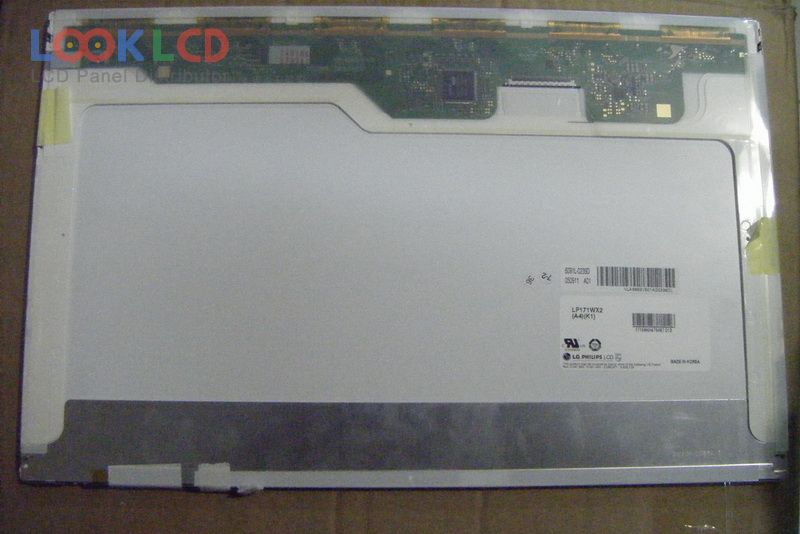

| Nama Wahi | LP171WX2-A4K1 |
| Waitohu | LG Display |
| Rahi | 17.1 |
| Taupānga | NBPC |
| Whakatau | 1440×900 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 350:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | LG.Philips LCD |
| panel model | LP171WX2-A4K1 3 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 17.1 inch |
| resolution | 1440(RGB)×900 , WXGA+ |
| display mode | TN, Normally White, Transmissive |
| active area | 367.2×229.5 mm |
| outline | 382.2×244.5×6.5 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 350:1 (Min.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
