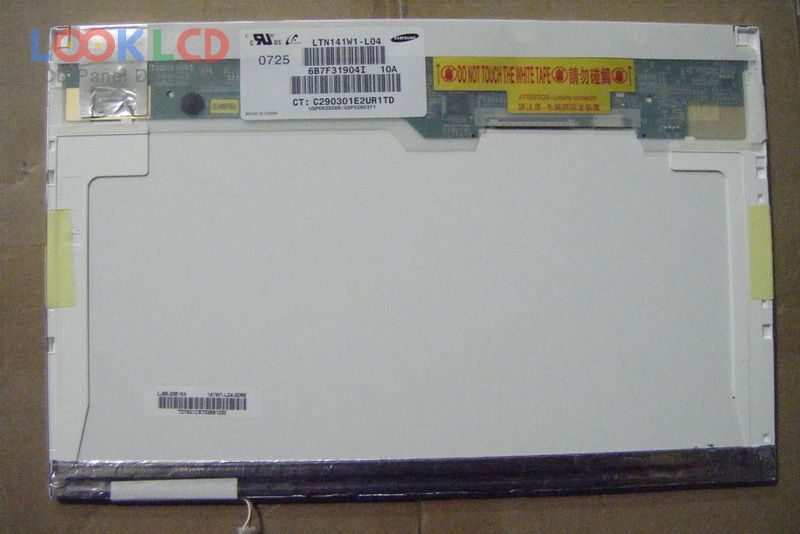

| Nama Wahi | LTN141W1-L04 |
| Waitohu | Samsung |
| Rahi | 14.1 |
| Taupānga | NBPC |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN141W1-L04 13 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 14.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 303.36×189.6 mm |
| outline | 319.5×205.5×5.5 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare or Glare, Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 300:1 (Min.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT06-001 | Samsung | 14.1 | 1280×800 |
| LTN141AT12-C01 | Samsung | 14.1 | 1280×800 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| LTN141AT16-003 | Samsung | 14.1 | 1280×800 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| LTN141BT08-001 | Samsung | 14.1 | 1440×900 |
| LTN141W1-L09-1 | Samsung | 14.1 | 1280×800 |
| LTN141X7-L06 | Samsung | 14.1 | 1024×768 |
| LTN141XB-L03 | Samsung | 14.1 | 1024×768 |
| B125HAN02.0 | AUO | 12.5 | 1920×1080 |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP171WX2-TLB2 | LG Display | 17.1 | 1440×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTD121EW7V | TOSHIBA | 12.1 | 1280×800 |
| LTN140KT13-B01 | Samsung | 14.0 | 1600×900 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| TT101WSQ-N10 | BOE | 10.1 | 1024×600 |
