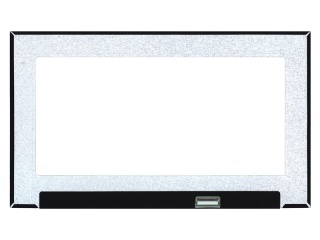

| Nama Wahi | LP156WFD-SPH2 |
| Waitohu | LG Display |
| Rahi | 15.6 |
| Taupānga | Laptop Industrial |
| Whakatau | 1920×1080 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 700:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | eDP |
| manufacturer | LG Display |
| screen size | 15.6 inch |
| pixel number | 1920(RGB)×1080 (FHD) 141PPI |
| active area(mm) | 344.16 × 193.59 (H×V) |
| luminance | 220 cd/m² (Typ.) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| good view at | Symmetry |
| color depth | 262K 45% NTSC |
| outline shape | Slim (PCBA Bent, T≤3.0mm) |
| refresh rate | 60Hz |
| signal type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model name | LP156WFD-SPH2 |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| response | 25 (Typ.)(Tr+Td) ms |
| work mode | IPS, Normally Black, Transmissive |
| backlight | WLED , 15K hours , With LED Driver |
| used for | Laptop Industrial |
| touchscreen | In-Cell Touch |
