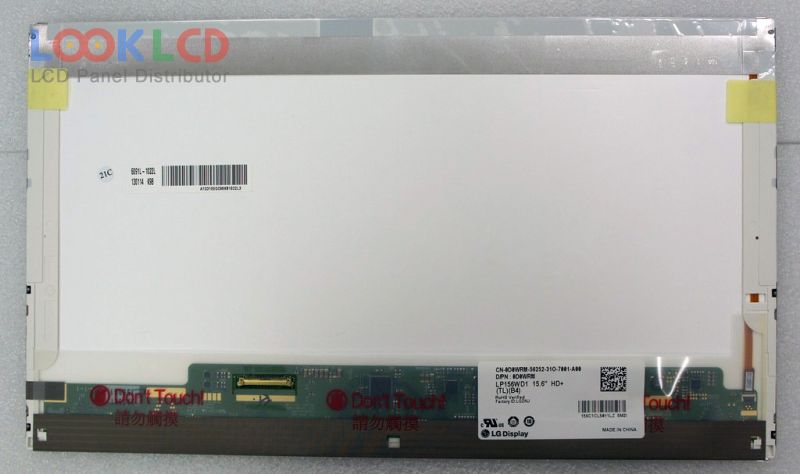

| Nama Wahi | LP156WD1-TLB4 |
| Waitohu | LG Display |
| Rahi | 15.6 |
| Taupānga | NBPC |
| Whakatau | 1600×900 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | LG Display |

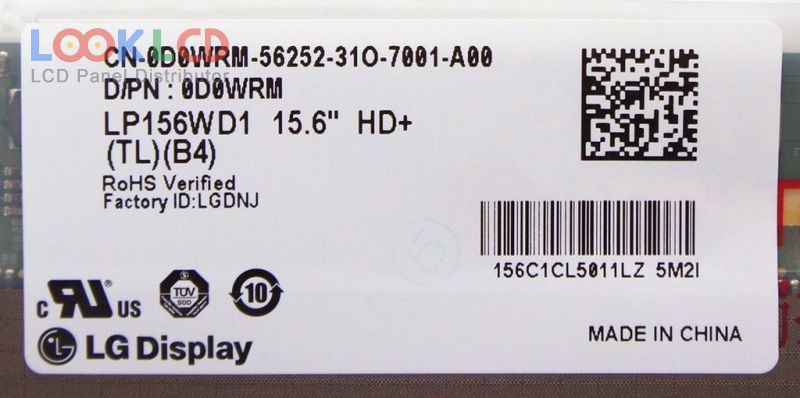

| panel model | LP156WD1-TLB4 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.6 inch |
| resolution | 1600(RGB)×900 , HD+ |
| display mode | TN, Normally White, Transmissive |
| active area | 344.16×193.59 mm |
| outline | 359.3×209.5 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit), CIE193160% |
| response time | 8 (Typ.)(Tr+Td) |
| viewing angle | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
