Nama Wahi | LC133LF1L01 |
Waitohu | PANDA |
Rahi | 13.3 |
Taupānga | Laptop |
Whakatau | 1920×1080 |
Te tito | CELL , a-Si TFT-LC |
Tirohanga | |
CR | 1000:1 |
Nga Tae | 16.7M |
Whakamuri | No |
Atanga | |
manufacturer | PANDA |
screen size | 13.3 inch |
pixel number | 1920(RGB)×1080 (FHD) 166PPI |
active area(mm) | 293.6 × 165.24 (H×V) |
luminance | 0 cd/m² |
viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
good view at | Symmetry |
color depth | 16.7M 75% NTSC |
outline shape | - |
refresh rate | - |
driver ic list | Built-in COG 4 source + 2 gate chips |
max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

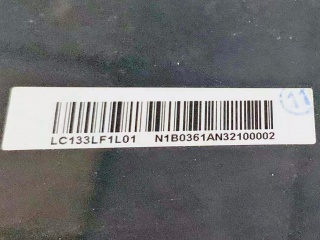

model name | LC133LF1L01 |
screen type | CELL , a-Si TFT-LCD |
arrangement | RGB Vertical Stripe |
outline(mm) | - |
contrast ratio | 1000 : 1 (Typ.) (TM) |
response | - |
work mode | FFS, Normally Black, Transmissive |
backlight | No B/L |
used for | Laptop |
touchscreen | Without |
