| Nama Wahi | LA121WH1-SL02 |
| Waitohu | LG Display |
| Rahi | 12.1 |
| Taupānga | Automotive Display |
| Whakatau | 1280×720 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 8S3P |
| Atanga | LVDS |
| manufacturer | LG Display |

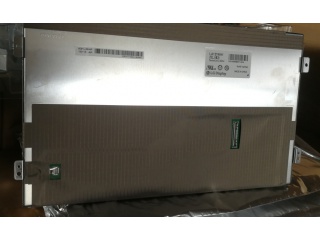

| model name | LA121WH1-SL02 |
| screen size | 12.1 inch |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1280(RGB)×720 (WXGA) 121PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 266.88 × 150.12 (H×V) |
| outline(mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| bezel area(mm) | 269.65 × 152.55 (H×V) |
| treatment | Antiglare |
| luminance | 500 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| response | 17/13 (Max.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | IPS, Normally Black, Transmissive |
| color depth | 16.7M 62% NTSC |
| backlight | 8S3P WLED , 10K hours , No Driver |
| mass | 417±5g |
| used for | Automotive Display |
| refresh rate | 60Hz |
| touchscreen | Without |

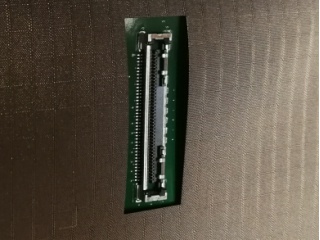

| signal type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
