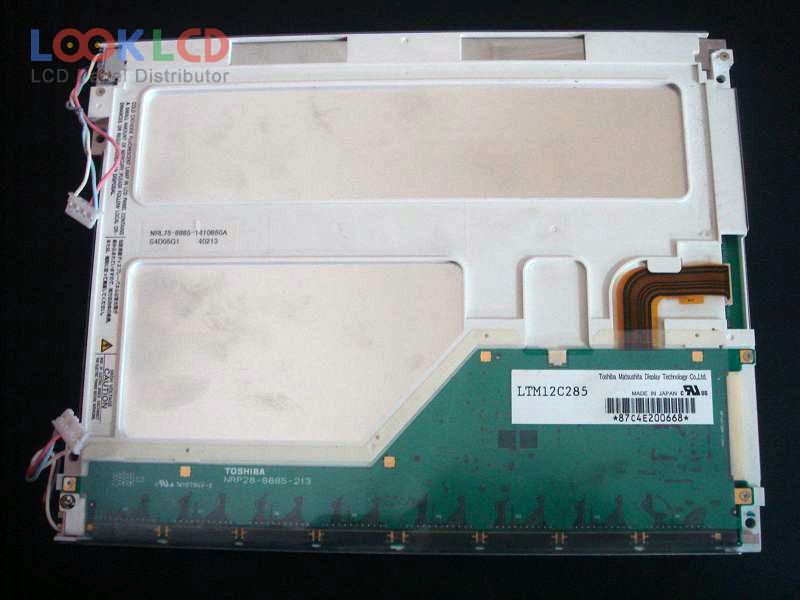

| Nama Wahi | LTM12C285 |
| Waitohu | TOSHIBA |
| Rahi | 12.1 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 250:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | Toshiba Matsushita |
| panel model | LTM12C285 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 246×184.5 mm |
| outline | 278.3×216×13.5 mm |
| surface | |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 250:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 50/50 (Max.)(Tr/Td) |
| viewing angle | |
| lamp type | 4 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 32 pins |
| input voltage | 3.3V (Typ.)(VDD) |
| application | IA |
