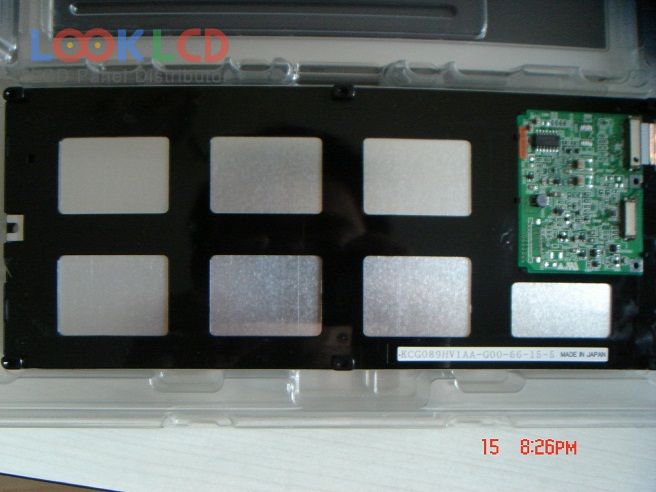

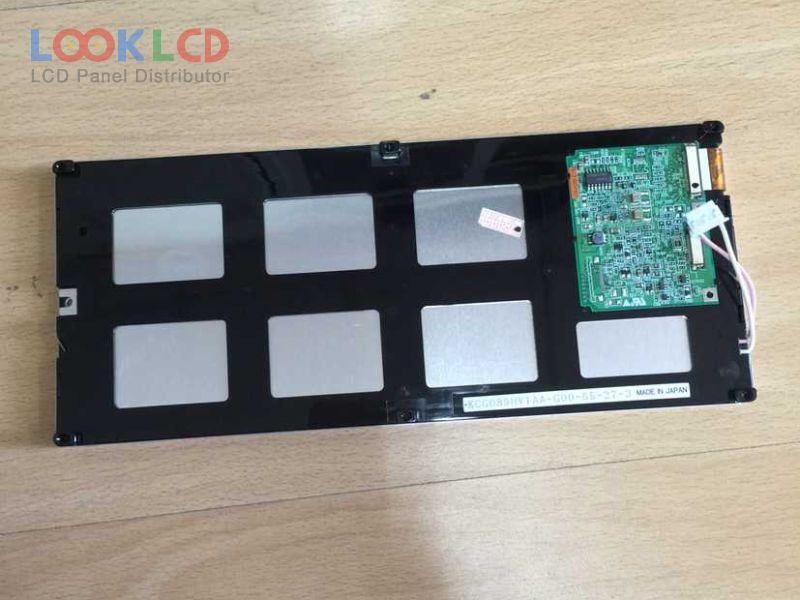

| Nama Wahi | KCG089HV1AA-G00 |
| Waitohu | Kyocera |
| Rahi | 8.9 |
| Taupānga | IA |
| Whakatau | 640×240 |
| Te tito | LCM |
| Tirohanga | 150 |
| CR | 30:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | Parallel Data |
| panel brand | Kyocera |
| panel model | KCG089HV1AA-G00 |
| panel type | CSTN-LCD , LCM |
| panel size | 8.9 inch |
| resolution | 640(RGB)×240 , HVGA |
| display mode | STN, Normally Black, Transmissive |
| active area | 211.18×79.18 mm |
| outline | 246×103×12.2 mm |
| surface | Glare (Haze 0%) |
| brightness | 150 cd/m² (Typ.) |
| contrast ratio | 30:1 (Typ.) |
| display colors | Color |
| response time | 190/180 (Typ.)(Tr/Td) |
| viewing angle | 50/50/35/20 (Typ.)(CR≥2)(L/R/U/D) |
| frequency | 75Hz |
| lamp type | 1 pcsCCFLOptional |
| signal interface | Parallel Data (8-bit), 20 pins |
| input voltage | 3.3/5.0V (Typ.)(VDD) |
| application | IA |
