| Nama Wahi | HX121WX1-110 |
| Waitohu | HYDIS |
| Rahi | 12.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 710:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HYDIS |

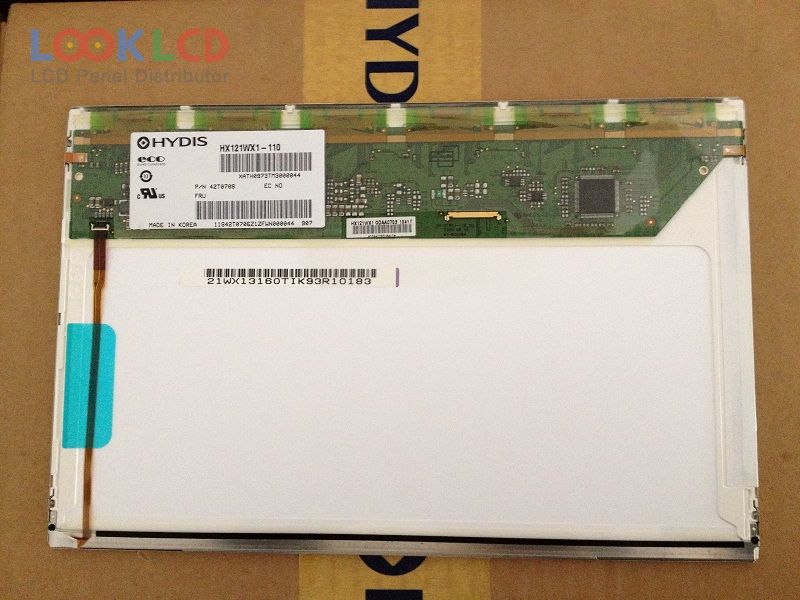

| panel model | HX121WX1-110 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | AFFS, Normally Black, Transmissive |
| active area | 261.12×163.2 mm |
| outline | 276.8×180×6.8 mm |
| surface | Antiglare (Haze 40%) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 710:1 (Typ.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
