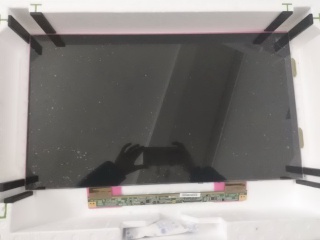

| Nama Wahi | HV236WHB-N40 |
| Waitohu | BOE |
| Rahi | 23.6 |
| Taupānga | TV Sets |
| Whakatau | 1366×768 |
| Te tito | CELL , a-Si TFT-LC |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | No |
| Atanga | LVDS |
| manufacturer | BOE |
| screen size | 23.6 inch |
| pixel number | 1366(RGB)×768 (WXGA) 66PPI |
| active area(mm) | 521.471 × 293.184 (H×V) |
| bezel area(mm) | - |
| luminance | 0 cd/m² |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| good view at | Symmetry |
| glass thickness | 0.50+0.50 mm |
| color depth | 16.7M 98% sRGB |
| mass | 471g (Typ.) |
| refresh rate | 60Hz |
| driver ic list | Built-in COF 2 source chips |
| signal type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| voltage supply | 12.0V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model name | HV236WHB-N40 |
| screen type | CELL , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 535.47 × 306.404 × 1.4 (H×V×D) |
| treatment | Antiglare (Haze 1%) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| response | 14 (Typ.)(G to G) ms |
| work mode | ADS, Normally Black, Transmissive |
| transmissivity | 5.3% (Typ.)(with Polarizer) |
| backlight | No B/L |
| used for | TV Sets |
| touchscreen | Without |
