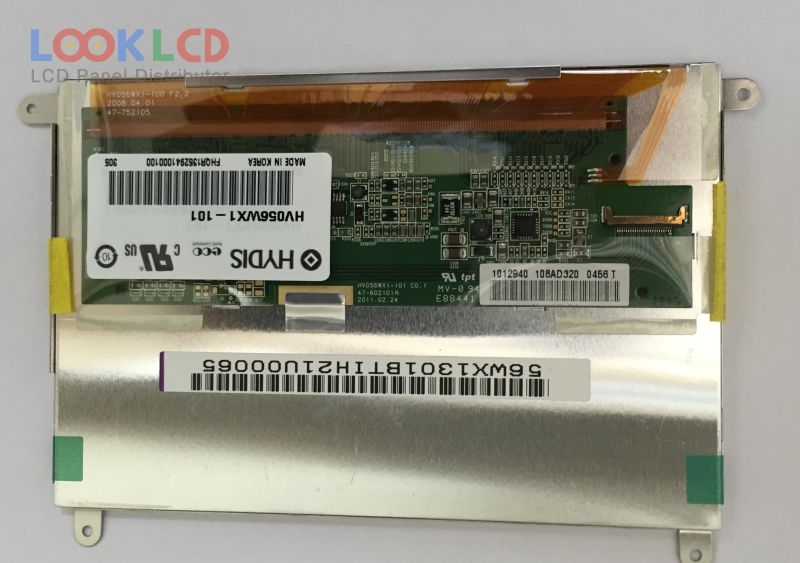

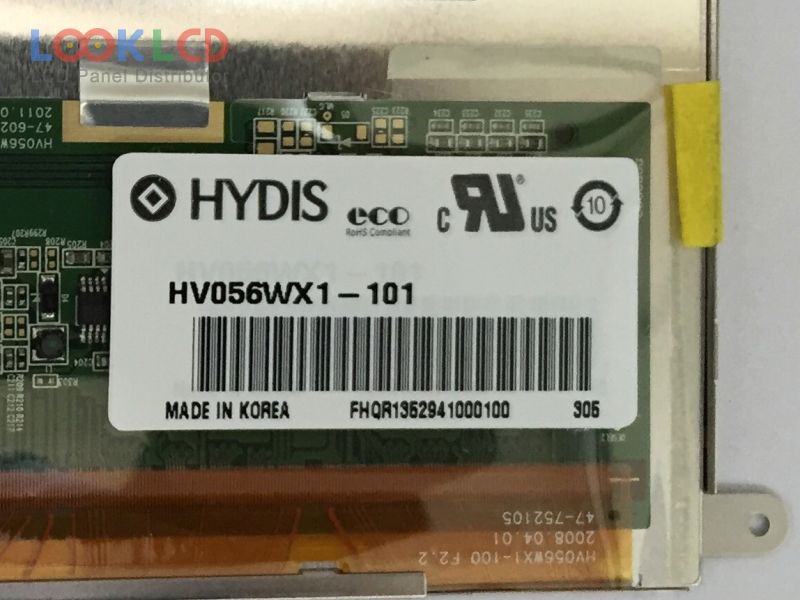

| Nama Wahi | HV056WX1-101 |
| Waitohu | HYDIS |
| Rahi | 5.6 |
| Taupānga | UMPC |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HYDIS |
| panel model | HV056WX1-101 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.6 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | HFFS, Normally Black, Transmissive |
| active area | 120.96×75.6 mm |
| outline | 131.7×87.7×5 mm |
| surface | |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 8S2PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 25 pins |
| input voltage | 3.3V (Typ.) |
| application | UMPC |
