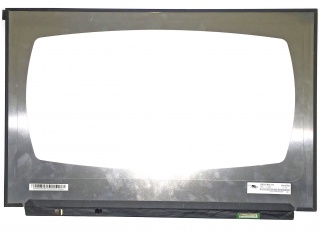

| Nama Wahi | HSD170PUW1-B00 |
| Waitohu | HannStar |
| Rahi | 17.0 |
| Taupānga | Laptop |
| Whakatau | 1920×1200 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | eDP |
| brand | HannStar |
| model | HSD170PUW1-B00 |
| diagonal size | 17.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1920(RGB)×1200 [WUXGA] 133PPI |
| configuration | RGB Vertical Stripe |
| active area | 365.184(H)×228.24(V) mm |
| outline dim. | 373.248(H)×241.38(V) ×6(D) mm |
| bezel area | - |
| treatment | Antiglare |
| luminance | 270 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| view direction | Symmetry |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| operating mode | IPS Pro, Normally Black, Transmissive |
| support color | 16.7M 95% DCI-P3 |
| light source | WLED , 15K hours , With LED Driver |
| form style | - |
| designed for | Laptop |
| frame rate | 60Hz |
| touch panel | Without |
| interface type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B170UW02 V0 | AUO | 17.0 | 1920×1200 |
| G170EG01 V0 | AUO | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ5 | LG Display | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L31 | Samsung | 17.0 | 1280×1024 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170EG02 V3 | AUO | 17.0 | 1280×1024 |
| M170EP01 V2 | AUO | 17.0 | 1280×1024 |
