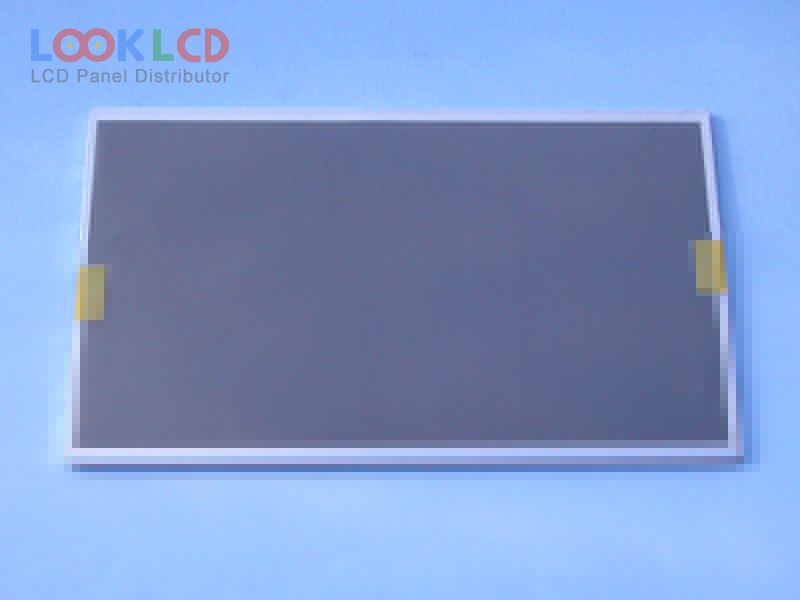

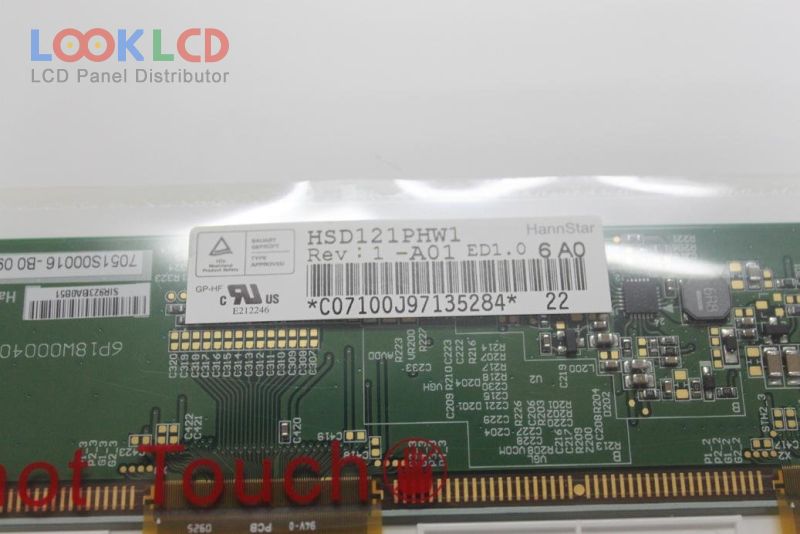

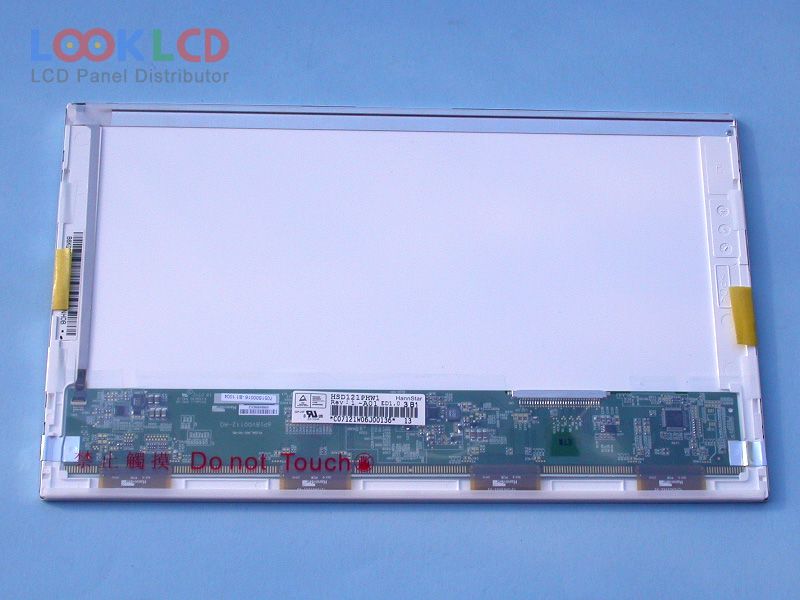

| Nama Wahi | HSD121PHW1-A01 |
| Waitohu | HannStar |
| Rahi | 12.1 |
| Taupānga | NBPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HannStar |
| panel model | HSD121PHW1-A01 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 268.01×150.68 mm |
| outline | 279×167.2×5.1 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193150% |
| response time | 3/9 (Typ.)(Tr/Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
