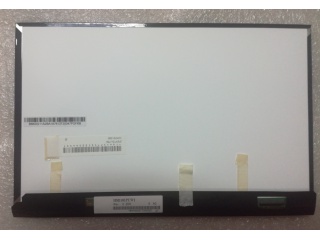

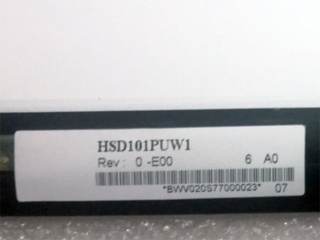

| Nama Wahi | HSD101PUW1-E00 |
| Waitohu | HannStar |
| Rahi | 10.1 |
| Taupānga | Pad & Tablet |
| Whakatau | 1920×1200 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| brand | HannStar |
| diagonal size | 10.1 inch |
| pixel format | 1920(RGB)×1200 [WUXGA] 225PPI |
| active area | 216.576(H)×135.36(V) mm |
| luminance | - |
| view direction | Symmetry |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| support color | 16.7M 50% NTSC |
| weight | - |
| frame rate | 60Hz |
| interface type | MIPI (4 data lanes) , 39 pins Connector |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | HSD101PUW1-E00 |
| type | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| response time | 25 (Typ.)(Tr+Td) |
| operating mode | IPS Pro, Normally Black, Transmissive |
| light source | WLED , 10K hours |
| designed for | Pad & Tablet |
| touch panel | Without |
