| Nama Wahi | G101EAN02.1 |
| Waitohu | AUO |
| Rahi | 10.1 |
| Taupānga | Industrial |
| Whakatau | 1280×800 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| brand | AUO |
| diagonal size | 10.1 inch |
| pixel format | 1280(RGB)×800 [WXGA] 149PPI |
| active area | 216.96(H)×135.6(V) mm |
| bezel area | - |
| luminance | 400 cd/m² (Typ.) |
| view direction | Symmetry |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| support color | 16.7M 50% NTSC |
| weight | 195g (Max.) |
| frame rate | 60Hz |
| interface type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |

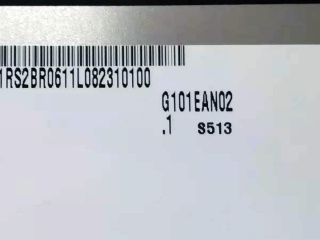

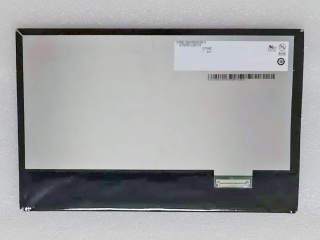

| model | G101EAN02.1 |
| type | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | 227.72(H)×147.8(V) ×4.8(D) mm |
| treatment | Hard coating |
| contrast ratio | 800:1 (Typ.) (TM) |
| response time | 29 (Typ.)(Tr+Td) |
| operating mode | AHVA, Normally Black, Transmissive |
| light source | WLED , 30K hours , With LED Driver |
| designed for | Industrial |
| touch panel | Without |
