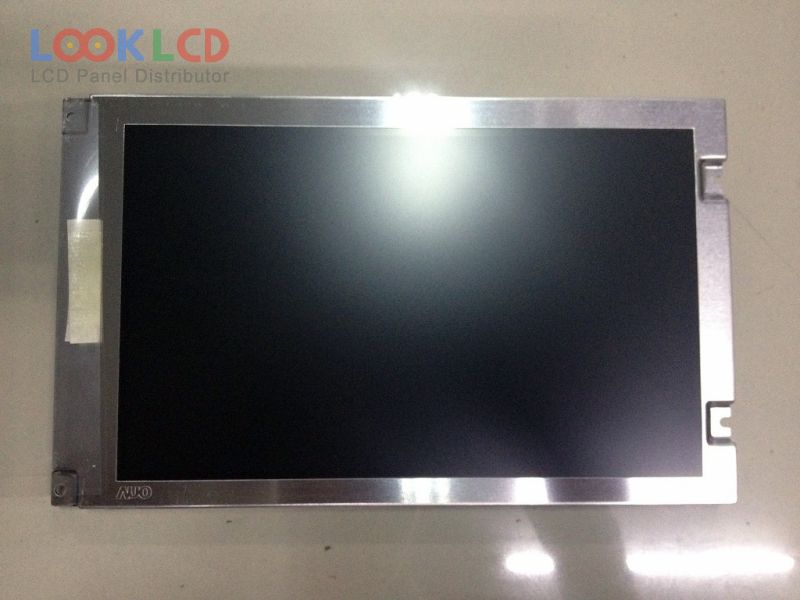

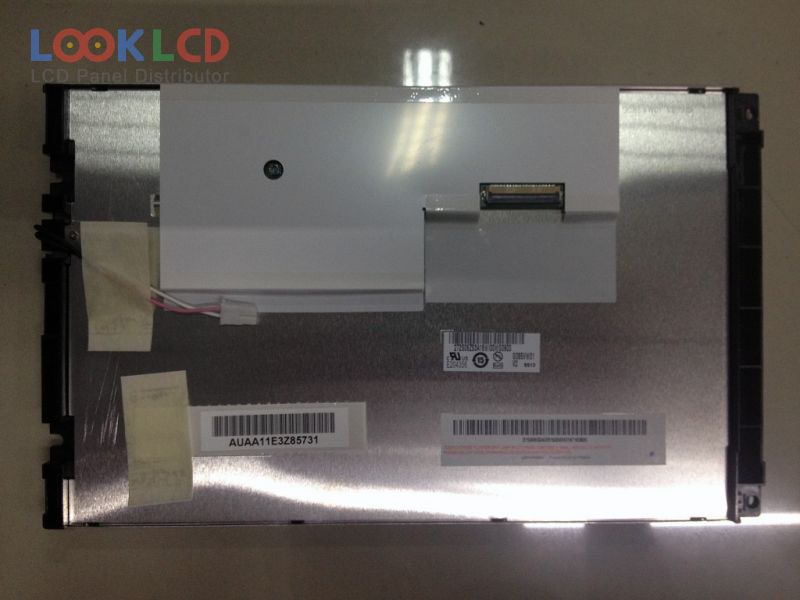

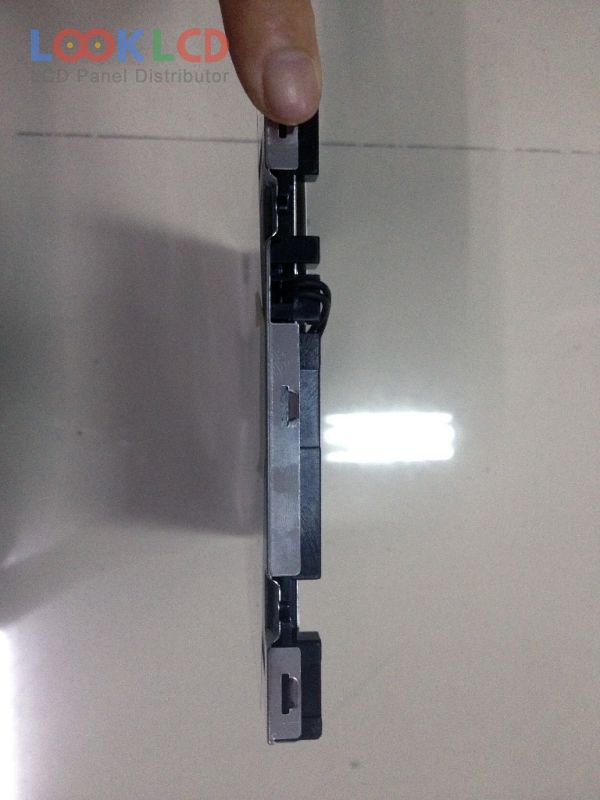

| Nama Wahi | G085VW01 V2 |
| Waitohu | AUO |
| Rahi | 8.5 |
| Taupānga | IA |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | AUO |
| panel model | G085VW01 V2 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.5 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 184.8×110.88 mm |
| outline | 222.7×135.4×12.5 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193150% |
| response time | 20/10 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
