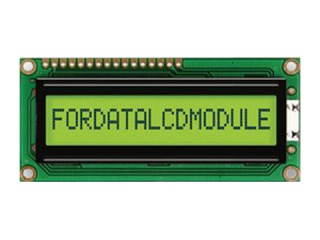

| Nama Wahi | FC1601E01-FHYYBW-51LR |
| Waitohu | Fordata |
| Rahi | 2.4 |
| Taupānga | Instruments & Meters |
| Whakatau | 5×8 |
| Te tito | STN-LCD , LCM |
| Tirohanga | |
| CR | 10:1 |
| Nga Tae | Monochrome |
| Whakamuri | YG-LED |
| Atanga | 8-bit |
| brand | Fordata |
| diagonal size | 2.4 inch |
| char format | 5×8 dots |
| font size | 3.07×6.56 mm |
| active area | 59.62(H)×6.56(V) mm |
| bezel area | 64.5(H)×13.8(V) mm |
| luminance | - |
| view direction | 6 o'clock |
| viewing angle | - |
| support color | Monochrome |
| weight | - |
| frame rate | - |
| interface type | 8-bit parallel , 16 pins Pad |
| power supply | 5.0V (Typ.) |
| environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | FC1601E01-FHYYBW-51LR |
| type | STN-LCD , LCM |
| font pitch | 3.77×6.56 mm |
| outline dim. | 80(H)×36(V) ×13.5(D) mm |
| treatment | - |
| contrast ratio | 10:1 (Typ.) (TM) |
| response time | 150/150 (Typ.)(Tr/Td) |
| operating mode | STN, Yellow/Green (Positive), Transflective |
| light source | YG-LED , 20K hours , W/O Driver |
| designed for | Instruments & Meters |
| touch panel | Without |
